China Factory High Efficiency Mining Machine Parts Shelby Tube Sampler Soil Sampler Tube Unaltered

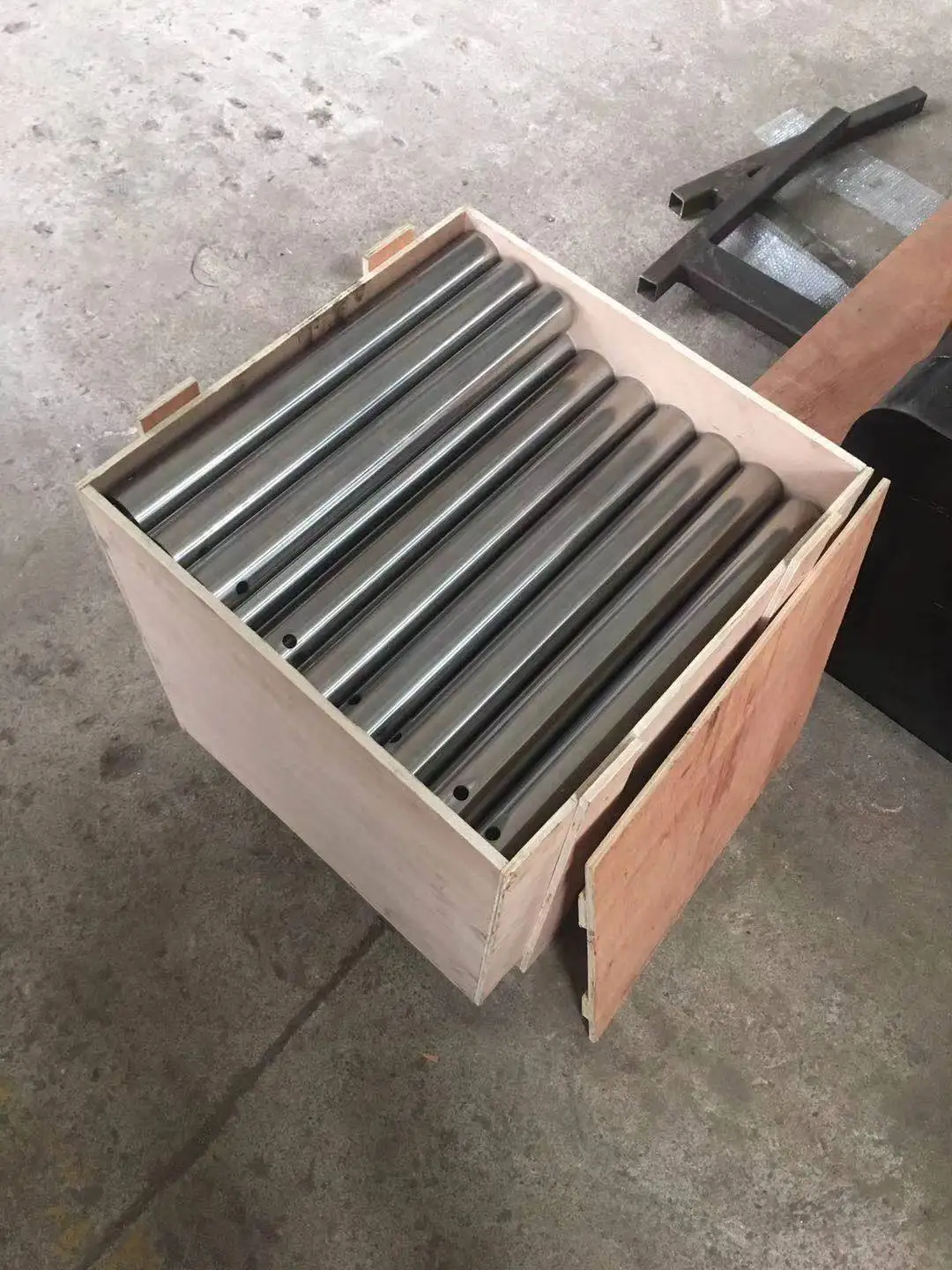

Shelby Tube Sampler, Soil Sampler Tube Unaltered


1. Thin-wall open-tube samplers (Shelby Tube Samplers) are used for soils that are particularly sensitive to sampling disturbance.
2. They are suitable for fine soils up to a firm consistency, and free from large particles.

3. The sampler consists of a thin-walled steel tube whose lower end is chamfered to form a cutting edge. The area ratio is
approximately 10%. The Shelby Tube Sampler gives good quality undisturbed samples in all fine cohesive soils, including sensitive clays, provided that the soil has not been disturbed by sinking the borehole.

4. Sample tubes are driven into the ground by a percussive method, using a Sliding Hammer.

5. The Drive Head is manufactured with an NW rod female connection unless otherwise specified. The head has an air-relief port and a simple arrangement for fixing the shelby tubes with 3 screws.

6. Shelby Tubes are available in cold-drawn seamless carbon steel and in stainless steel. Usual diameters are 3" (76.2 mm) or 4" (101.6 mm) OD and the length of the tube is determined by the customer. When specifying the length of the tube required please allow an extra 100 mm for fixing the tube to the drive head.

7. Please note that the cutting edge is thin and fragile and is likely to distort after some period of normal use. A refurbishment service is offered on used tubes.

Product Description

Specification
