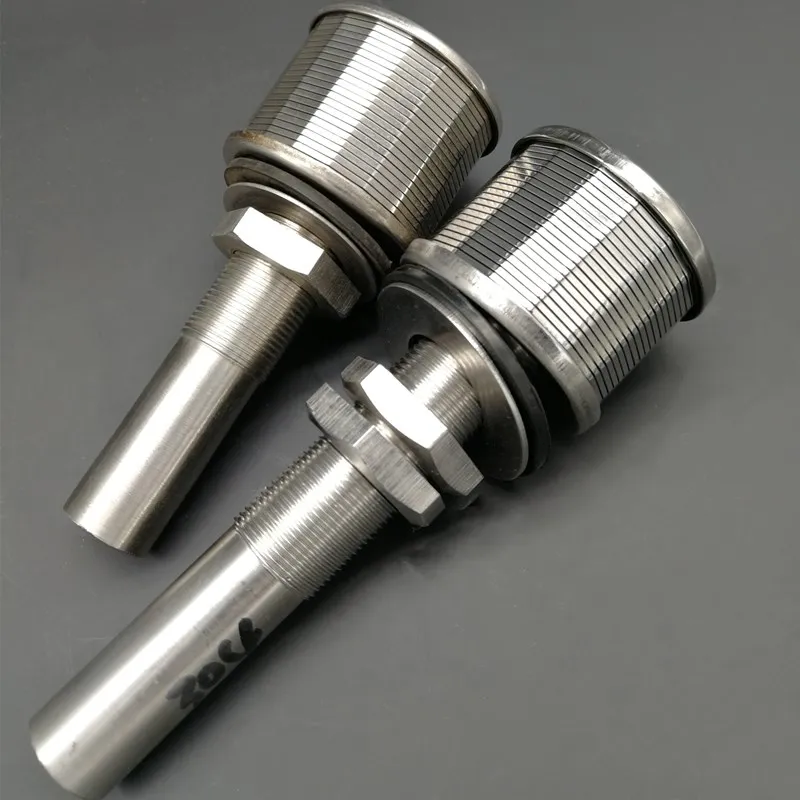

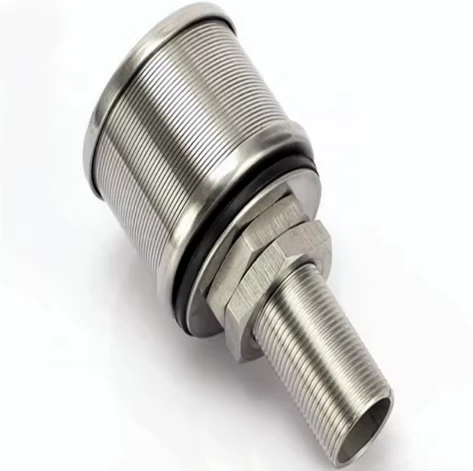

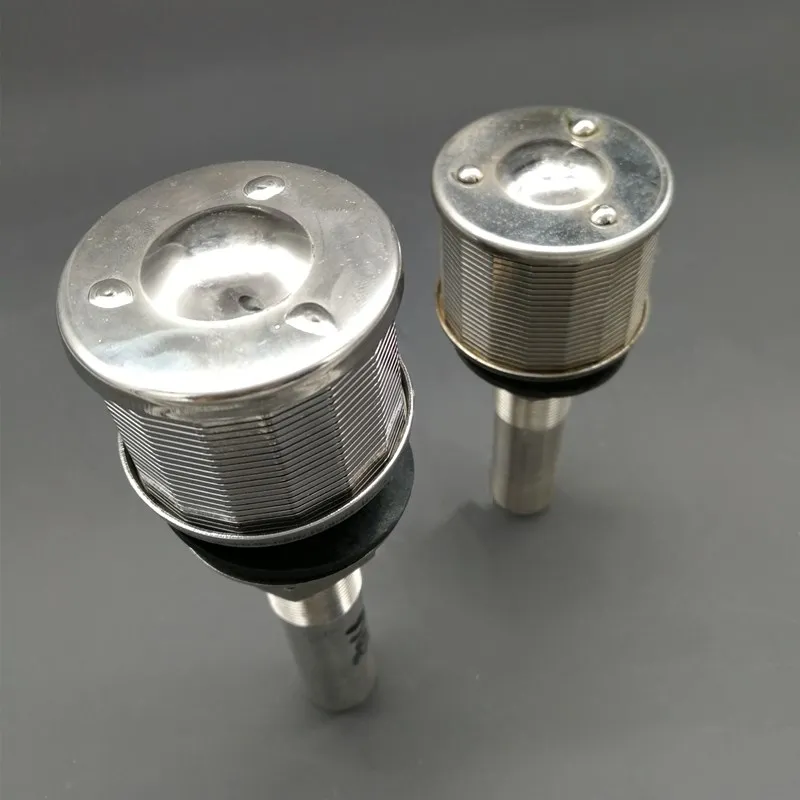

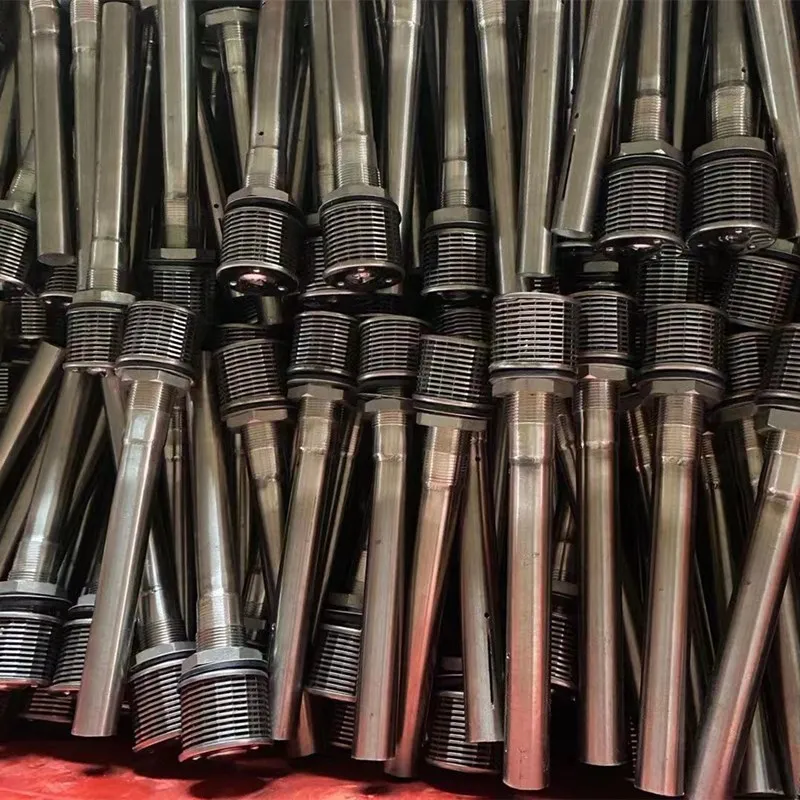

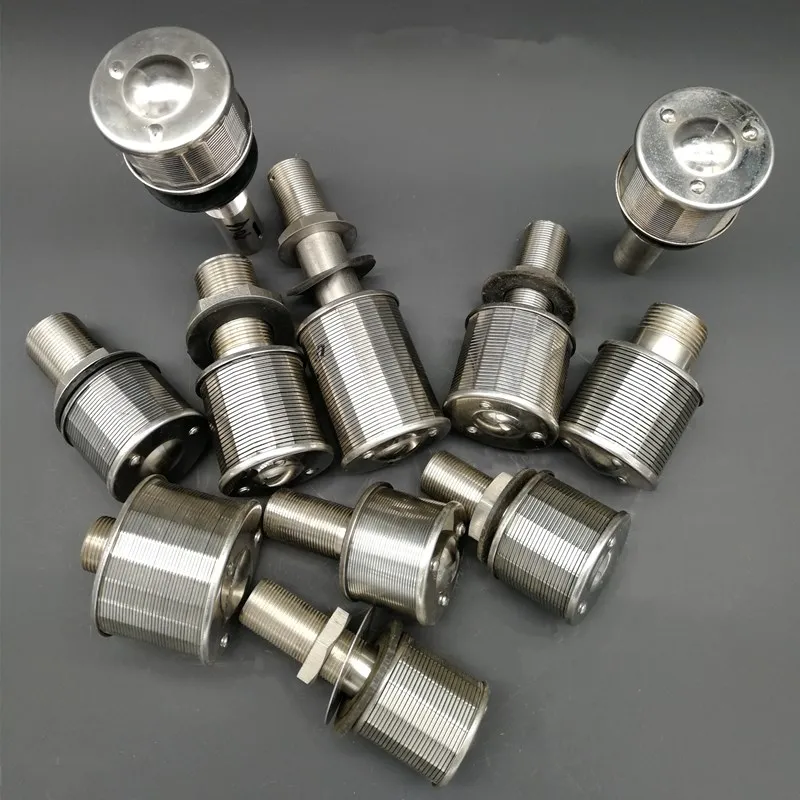

Filter Nozzle 1" Stainless Steel Wedge Wire Screen Johnson Type Nozzle Strainer For Filtration Tank

Micro-slotted nozzles are used for the retention of granular media in Water treatment equipment.These media can be of any type, such as: activated carbon, sand silica, ion exchange resins, Greensand, MTM, Birm, Pyrolox, among others. Due to their application in the food and beverage industry, they are made of stainless steel. Type 316L stainless. This material is more resistant both mechanically and thermally. The last allows sanitizing the granular medium with steam.
In addition to the retention function, the micro-slotted nozzles perform a good drainage, as well as an adequate distribution of the flow, both in equipment that works under pressure, and in those that work by gravity.
The microgroove through which the fluid circulates has a "V" shaped cut, with the most closed part towards the outside of the nozzle. This design prevents clogging.
The microgroove is continuous and has a total area for flow that is greater than the sectional area of the connecting nipple. This form does not constitute a flow restriction and therefore causes a low pressure drop.
The opening of 0.18 mm in the most closed part, which is the one that has contact with the granular medium, allows to directly retain any granule greater than twice the microgroove opening (0.36 mm) without the need for a 1/8" x 1/16" gravel bed as support.
