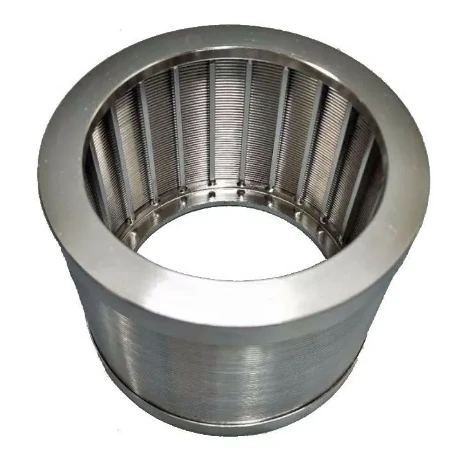

Factory Directly Supply Stainless Steel Johnson Industrial Wastewater Wedge Wire Screen

Wedge wire Johnson filter mesh with stiffeners screen are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles. Our wedge wire filter are manufactured directly on a machine.They have the unique...

Send Inquiry

Features

Wedge wire Johnson filter mesh with stiffeners screen are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles.

Our wedge wire filter are manufactured directly on a machine.They have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one.

SPECIFICATION FOR WEDGE WIRE SCREEN
Profile wire size	long rectangle shape	as required	Common Size ( W × H ): 1.5 × 2.2mm, 1.5 × 2.5mm, 2.3 × 3.6mm, 1.8 × 4.3mm, 3.0 × 4.7mm and so on
	short rectangle shape	as required
	trapezoid shape	most commonly used
Support bar size	rectanglar shape	as required	Common Size ( W × H ): 2.3 × 2.7mm, 2.3 × 3.6mm, 3.0 × 4.7mm, 3.7 × 5.6mm, 3.3 × 6.3mm and so on. Roundsupport bar diameter:2.5-5mm
	round shape	as required
	trapezoid shape	most commonly used
Supporting bar distance	1.5-3cm. Other specifications can be customizedaccording to requirements

Application:

widly used in coal,mine,water treatment, food industry and etc field.

Filter direction:

Cylindrical screen for outside to inside filtration

Cylindrical screen for inside to outside filtration

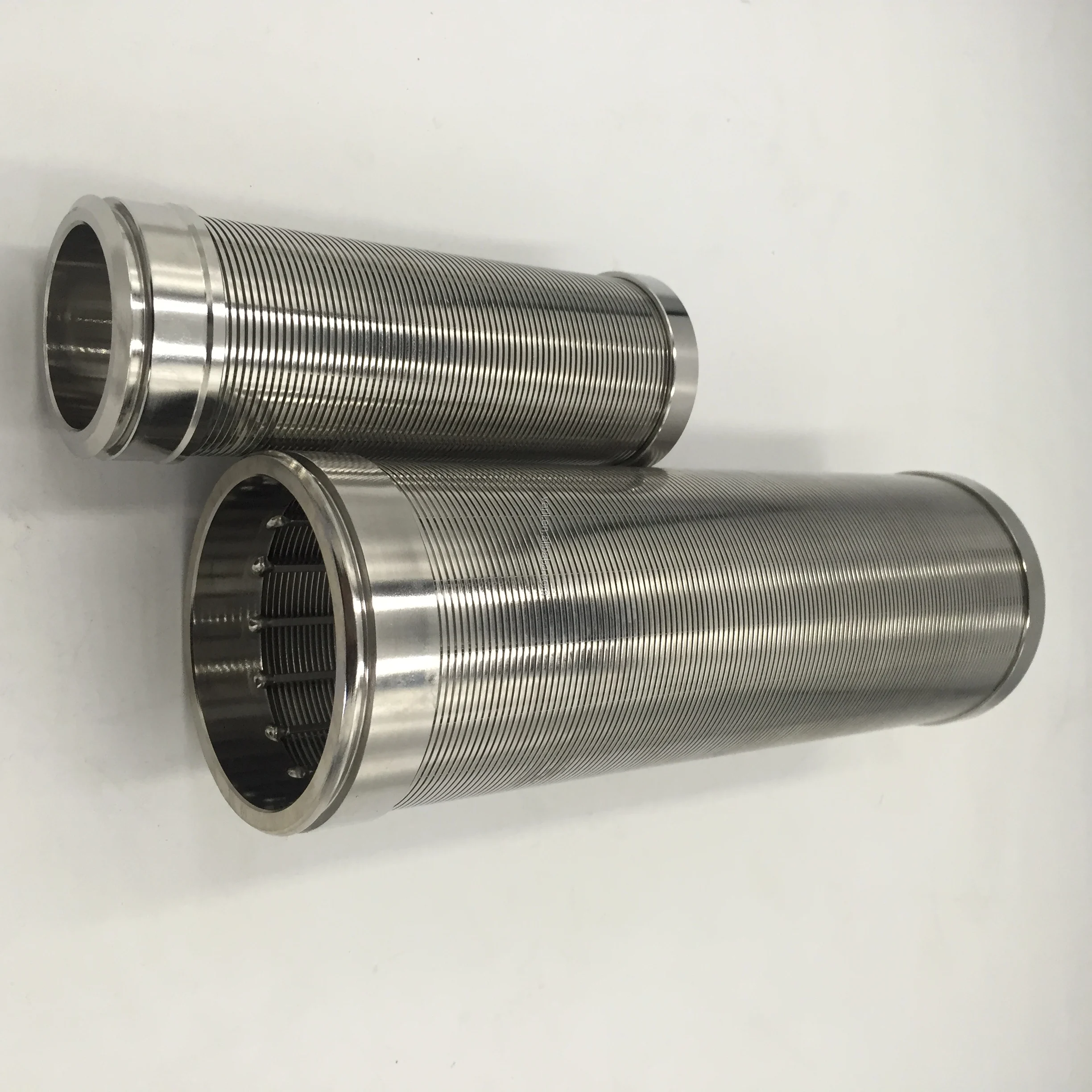

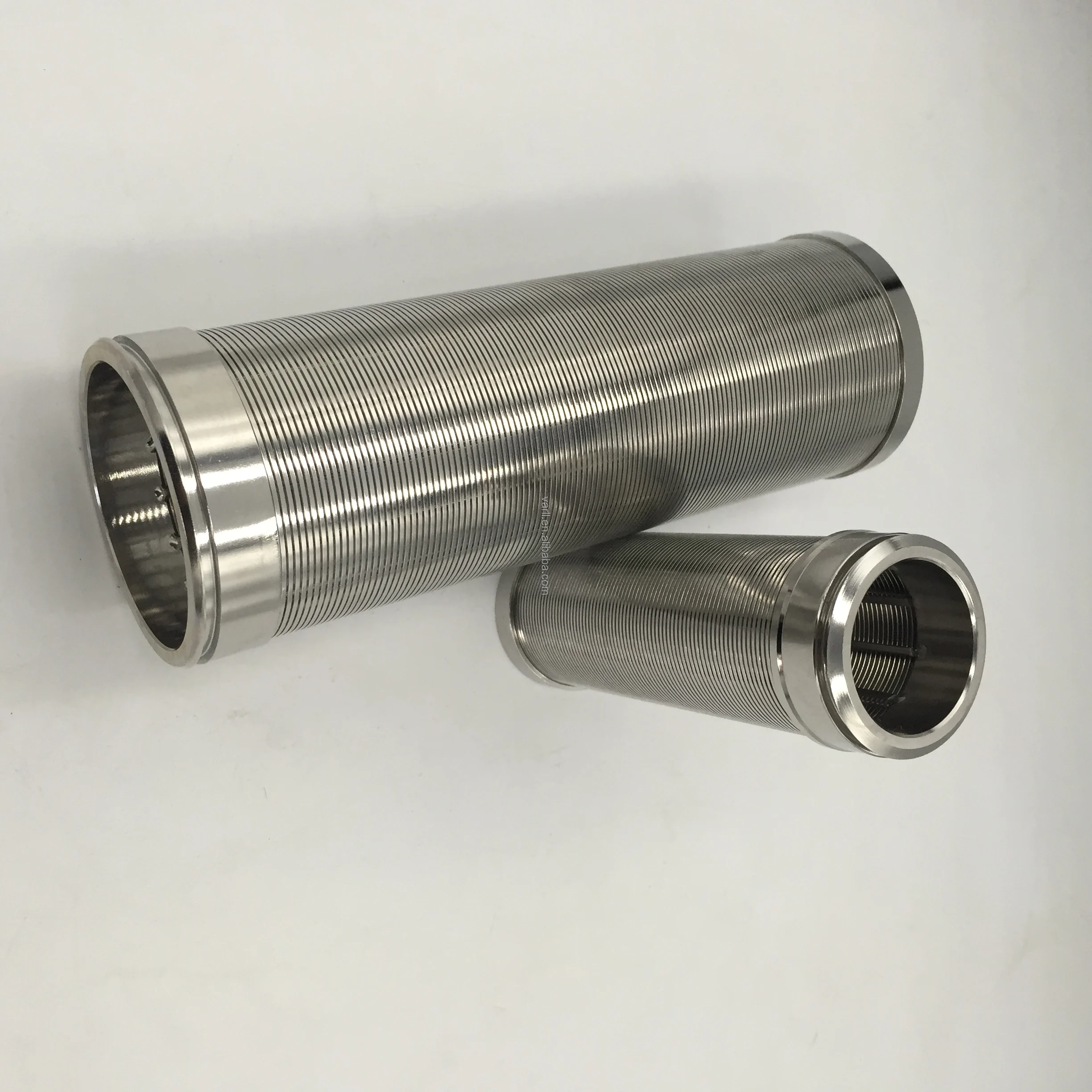

304 316 Micron Stainless steel wedge wire Johnson filter mesh with stiffeners screen
