Customized Stainless Steel 304l Stainless Steel 316l V Wedge Wire Filter Johnson Water Well Screen

1.Introduction

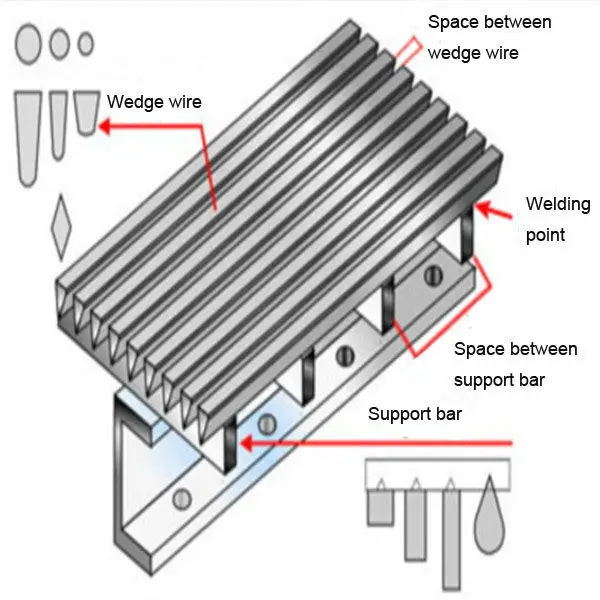

Using high-quality pre-rolled stainless steel wire sieve into a trapezoid, winding through automated production equipment, welding the support bar, and then by cutting, welding edge machining processes from net member.

1.Material:Stainless steel, High manganese steel,low carbon steel

2.Wedge wire profiles:2mm-2.5mm
3.Support bar:wedge,round,square
4. Sieve slit width :0.5mm or other
5.Support bar pitch:1.5cm-3.0cm

2.Aplication

Widely used in many industries in the screening, filtering, dehydration, mud and other operations.

3.Fatures

Trapezoidal cross section sieve, sieve slit gap on the narrow width, with easy leakage, wear, corrosion resistance and other characteristics. It also has a very high strength, stiffness and load capacity, can be made into various shapes rigid screening filter.

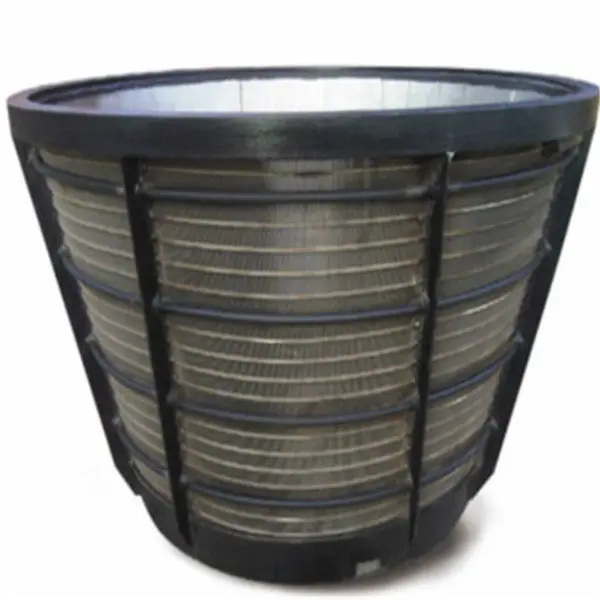

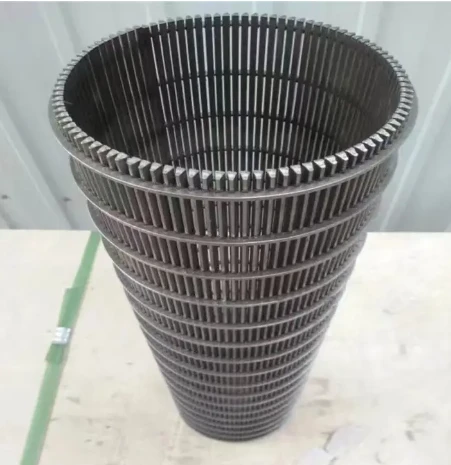

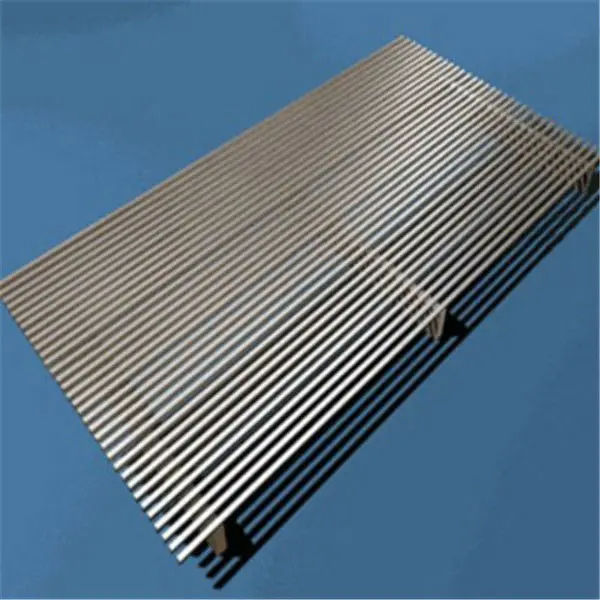

4.Picture
