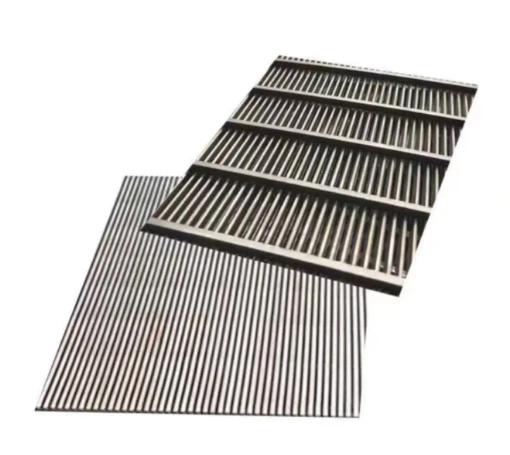

Customizable Stainless Steel Plant Factory Steel Crimped Wire Mesh Sand Gravel Crusher Hooked Vibrating Sieve Screen Mesh

Customizable Stainless Steel Plant Factory Steel Crimped Wire Mesh Sand Gravel Crusher Hooked Vibrating Sieve Screen Mesh

Wedge wire screen is a metal mesh element widely used in screening, filtration, dehydration and desliming operations for sieving and filtration. It has high strength, rigidity and load carrying capacity and can be made into a variety shapes of rigid screening filters. The wedge wire screen...

Send Inquiry

Features

Wedge wire screen is a metal mesh element widely used in screening, filtration, dehydration and desliming operations for sieving and filtration. It has high strength, rigidity and load carrying capacity and can be made into a variety shapes of rigid screening filters.
The wedge wire screen consists of surface profiles and support profiles. Surface profiles, usually v-shaped wires, are wrapped and welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows. The direction of the flow is determined by the position of V-shaped wires (surface profiles) in relation to the support profiles. Wedge wires screens are either flow-out-to-in or flow-in-to-out.

Material

stainless steel/duplex 2205 2507 2207 and other metals

Surface profile type

triangle wire.

Support profile type

round bar, rectangular bar, wedge wire, triangle wire.

Slot size

0.05 mm – 10 mm.

Pitch

10 mm – 35 mm.

Panel width

500 mm – 2000 mm.

Panel length

500 mm – 3000 mm.

Feature

Flat surface.
Excellent filtering performance.
Accurate distance between supporting profile.
Welded production process for solid and strong structure.
Good mechanical properties.
High strength.
High load capacity.
Corrosion and rust resistance.
Temperature resistance.
Chemical stability.

Application

Wedge wire screen panels have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings. The detailed application fields are as follows:
* Vibrating screen decking.
* Surface water intake screens.
* Fish diversion screen panels.
* Hatchery screens.
* Grain drying screen.
* Malt kin or germination floors.
* Architectural wedge wire screen.
* Wedge wire grating.
