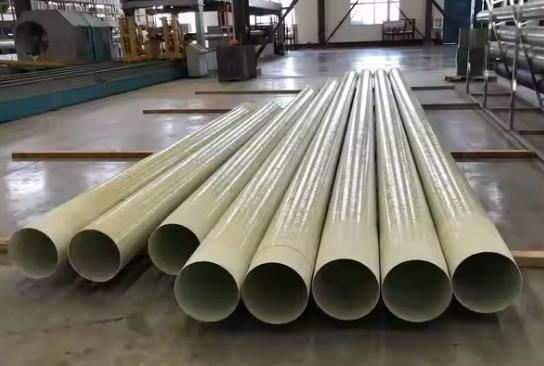

API 15HR GRE Downhole Tubing Used in Oil Well Production

Product Description

Specification:

Our GRE oil pipes and fittings had already certificated by API 15HR and API 15LR.
SPECIFICATION:
a. Diameter Range: 43.5mm - 1638mm (1" - 40")
b. Rated Pressure Range:3.45- 34.5MPa
c. Max. Operating Temperature: 110℃

It is glassfiber reinforced thermonsetting resin pipeline manufactured by micro-controlled filament winding of expoxy resin and high- strength glassfiber roving.

Production range:

1.Diameter:DN40-DN600

2.Pressure rating:3.45Mpa-34.5Mpa

Production standard: API 15HR-2001 /SY/T6267-2006 for high pressure fiberglass line pipe.

Range for Application:

1.Wastewater transmission or wastewater treatment pipeline;

2.High-pressure delivery line for petroleum, natual gas, saline water, CO2 and H2S 3.Connecting pipes for storage tanks and fire hoses.

Uses and Applications
• Crude oil transmission lines
• Gas transmission lines
• Oilfield re-injection lines
• Brine, saltwater and seawater lines
• Potable water transport lines
• Brackish water transport lines
• Wastewater and sewage systems
• Drainage lines
• General industrial service for mildly corrosive liquids

Performance
our fiberglass pipe laminate meets the requirement of API specification API 15LR and API 15HR. Pipe and fittings have a liner thickness of 0.25mm. Pipe with no liner is available upon request. The pipe wall thickness established in this catalogue is based on design temperature of 93°C. Contact for higher application temperatures.
Maximum operating Temperature: 93 °C
