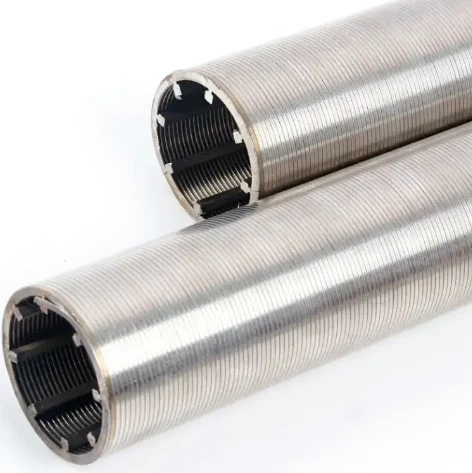

Used For Water Treatment 20mesh Stainless Steel Ss304 Wedge Wire Filter Element

Used For Water Treatment 20mesh Stainless Steel Ss304 Wedge Wire Filter Element

Product Description No matter how special the filter which you looking for, we will make your idea come true. We make sure can do so. pls kindly Follow us first, then click"Send Inquiry" or" Contact Supplier",let's solve all issue through communication. External diameter:...

Send Inquiry

Features

Product Description
No matter how special the filter which you looking for, we will make your idea come true. We make sure  can do so.

pls kindly Follow us first, then click"Send Inquiry" or" Contact Supplier",let's solve all issue through communication.
Material
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Length Range
Up to 6000mm
Width Range
Up to 6000mm
Slot Range
20 micron to 3000 micron (Tolerance:+-5 micron)
Other Shapes
Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.
Wedge Wire
0.5X1.5
0.75X1.5
1X2
1.5X2
2X3
2X4
3X5
Support Rod
1.5X2.5
2X3
1.5X2.5
2X3
1.5X2.5
2X3
1.5X2.5
2X3
2X3
2X4
3X5
3X6
3X10
4X7
2X3
2X4
3X5
3X6
3X10
4X7
3X5
3X6
3X10
4X7
5X6
5X8
End Finishing
End Finishing
Note
Customized According To Requirement
External diameter: 25--300mm
Standard: Non-standard, OEM, ODM

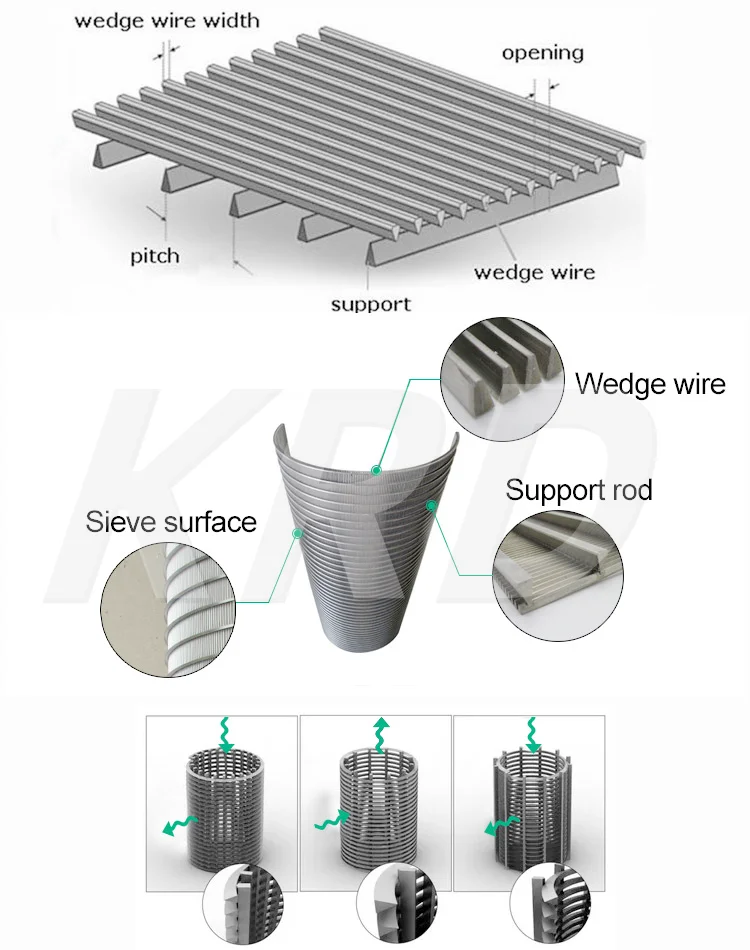

Specification:Easy leakage, wear resistance, corrosion resistance. The mesh cross
section is a trapezoid, narrow width of the gap, have a wire made of cold rolled
stainless steel, this wire is support rods. The screen is uniform, the welding is
stable, high hole rate, long service life, high strength, stiffness and bearing capacity
of rigid, screening filter device can be made into various shapes.
The service life of KRD products is 90% -95% of the original filter element, which meets the needs of most customers

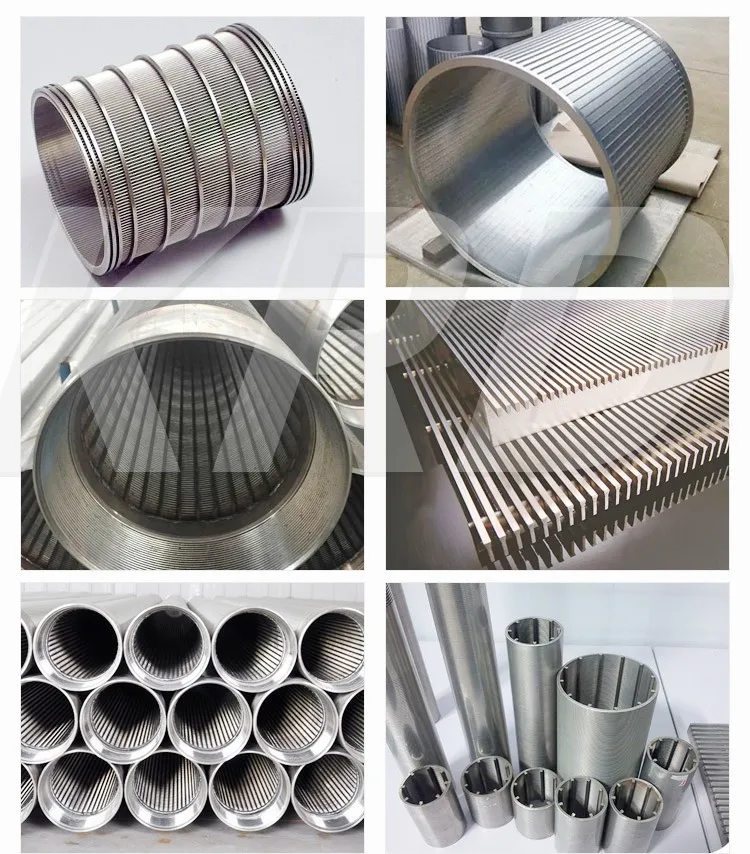

Details Images
