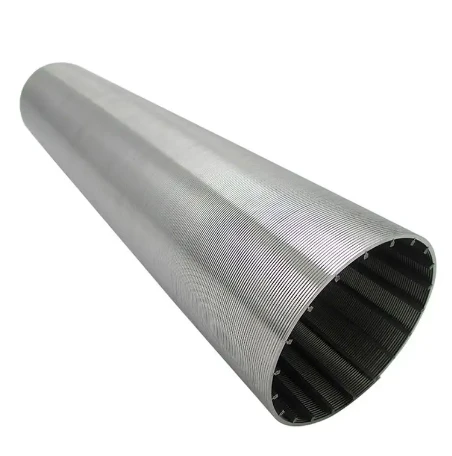

Stainless Steel Tubing Polished Customized Water Well Johnson Screen Wedge Wire Screen Metal Filter Screen

Stainless Steel Tubing Polished Customized Water Well Johnson Screen Wedge Wire Screen Metal Filter Screen

Product Description Stainless steel wedge wire screen pipe Johnson tube The Sand control Johnson wedge wire oil water well screen pipe has a wide range of wire and rod shapes make it possible to achieve the optimum balance of strength, open area, abrasion resistance and dewatering/separation...

Features

Product Description
product-1-1
Stainless steel wedge wire screen pipe Johnson tube
The Sand control Johnson wedge wire oil water well screen pipe has a wide range of wire and rod shapes make it possible to achieve the optimum balance of strength, open area, abrasion resistance and dewatering/separation efficiency.

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions , equire these variations in a screen's construction.
Material choice:SUS304, 316, 316L, 2205, 2507, 904L, Hastelloy,Titanium alloy and other special metal materials
product-1-1
product-1-1
product-1-1
Product Specification
product-1-1
Material
sus304,sus316,sus316L,Duplex,Hastelloy,etc
OD Range
25.4um-2000mm or other size
ID Range
17.4um-1985mm or or as customers' requirement
Length Range
1- 6m, 5.8m fit for the container
Slot Range
20 micron to 3000 micron (Tolerance:+-5 micron)
Wedge Wire
0.75*1.45
1*2
1.5*2.5
Support Rod
2*2.3
2*3
3*5
End Connection
welding (beveled end), thread coupling(STC,LTC,BTC), flange,
Surface treatment
galvanized, painted, polish, packiled and passivation, etc.
Notes
wires, rods and slots sizes can be customized
Remarks:
1. Make tubes with different material according to user requirements.
2. Slot should be bigger than 0.025mm and less that 3000mm long.

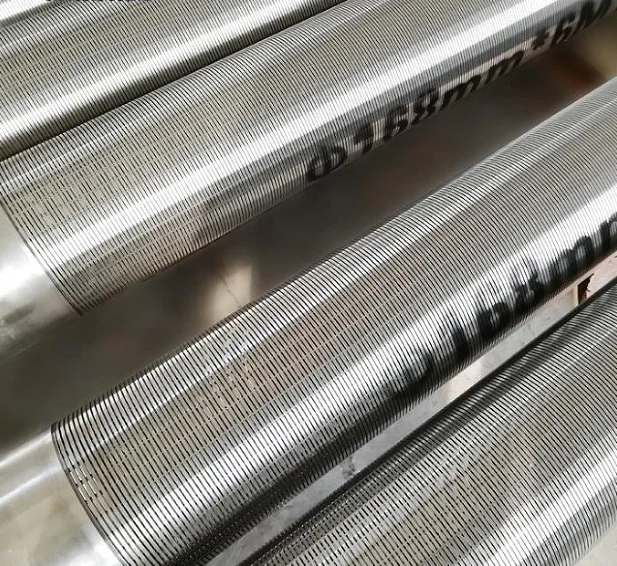

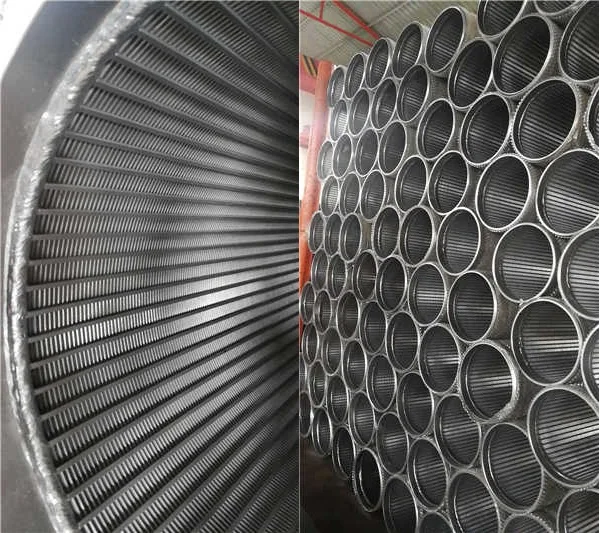

Details Images
product-1-1

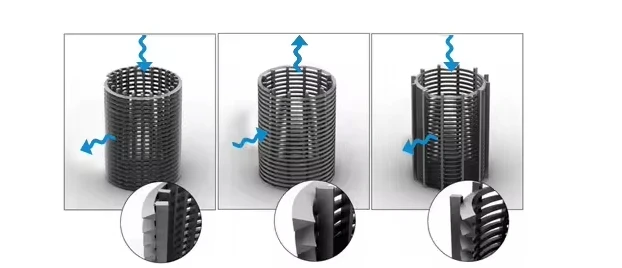

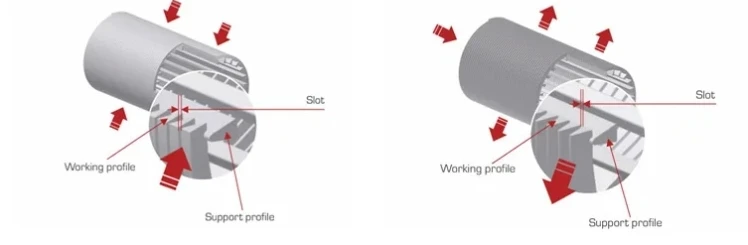

(FOTI)- sircumferential slot, flow from outside (FITO)- curicumferential slot, flow from inside to inside to outside
product-1-1
product-1-1
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level's down, thus to save energy consumption
3. Reduce the abrasion of the pump Under the same condition, high open area can make the speed of groundwater's entering into the
screen much slower than any other filtration apparatus, which will avoid sand's entering into screen because of high pressure,
thus reduce the abrasion of the pump.
4. Extend the life span of wells Comparatively, groundwater's entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Advantages of wedge wire:
- Strong construction, high strength
- Excellent media retention
- Superb backwash ability
- Less possibilty of clogging
- Long service life
- Low Maintenance costs
Application
Stainless steel pipe can be used as accessories for automatic filter cleaning, such as:Automatic filter (automatic backwash, scraper self-cleaning, scraper self-cleaning, sucking self-cleaning filter)
product-1-1
product-1-1
product-1-1

Mineral Processing

Dewatering, classifying, sizing...
product-1-1

Architecture& Construction

Lighting elements, Interior applications, Landscape elements, Exterior facades, Grating, Art & Sculptures...
product-1-1
