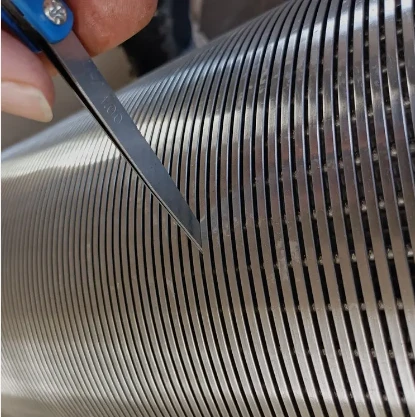

Stainless Steel Mesh Wedge Wire Johnson Screen Tube For Water Well Sand Control

Stainless Steel Mesh Wedge Wire Johnson Screen Tube For Water Well Sand Control

Huadong screen is a factory specializing in the manufacture of wedge well pipe. Exquisite craftsmanship has won us very high praise in the filtration industry. Our plant is equipped with state of the art screen fabrication technology to produce finest quality wedge wire screens with accuracy of...

Send Inquiry

Features

Huadong screen is a factory specializing in the manufacture of wedge well pipe. Exquisite craftsmanship has won us very high praise in the filtration industry. Our plant is equipped with state of the art screen fabrication technology to produce finest quality wedge wire screens with accuracy of wire drawing facility to achieve the highest product quality.
Wedge Wire Screen(Johnson Screen) as filter media, they are widely used in Petroleum, Chemical, Pharmaceutical, Food Industry, Sewage Treatment and other industries.
Weage Wire Water Well Tube
With a high open area, allowing for better access to the entire formation around the screen, fines and drilling fluid are removed quickly and completely, resulting in a better well development. Wedge wire screen tubes /Johnson Screen Tubes are widely used in well drilling.
product-1-1

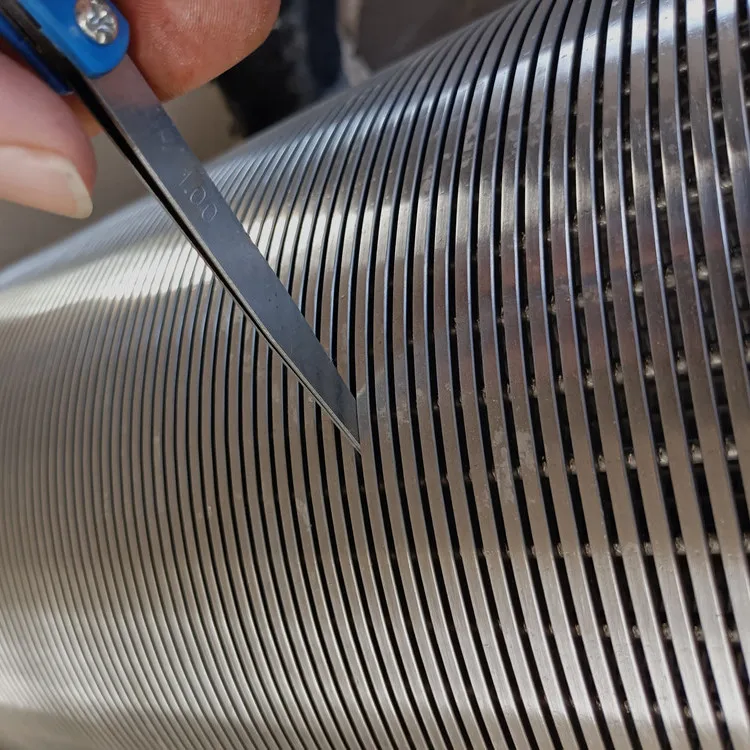

Key Design Features of Water Well Screen
product-1-1
Non Plugging, Less Maintenance
The continuous V-wire slot design allows for lower entrance velocity of the water, reducing encrustation rates. The slot design also resists plugging and prevents sand from damaging pumps.
product-1-1

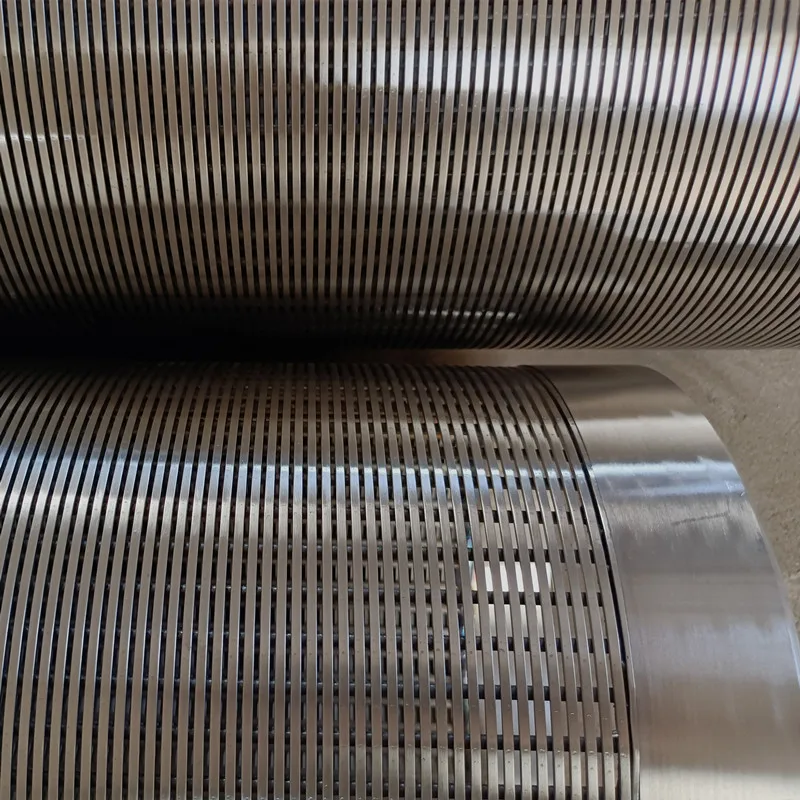

Large Open area, Less Pumping Costs
The continuous slot wedge wire offers higher open area than any other type of screens. The high open area of the V-wire well screen allows for water to enter the well freely, resulting in minimal draw down and less energy usage by a pump.
product-1-1

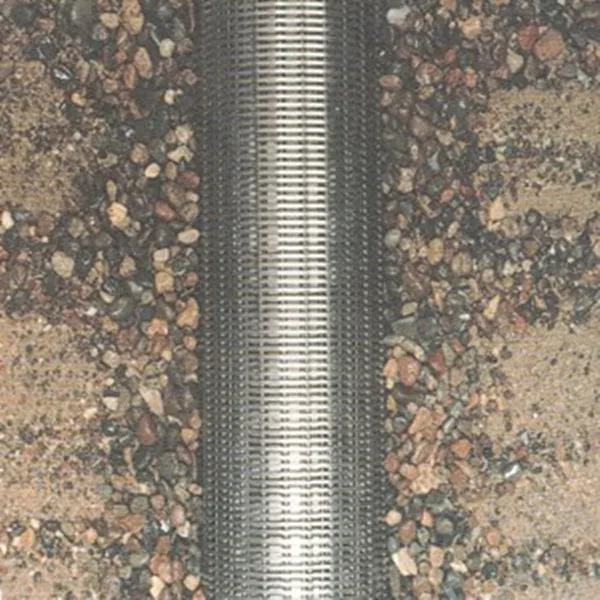

Sand Control
The water well screen is a key component of the sand control system, either as an integral component of the gravel pack, or as a standalone provider of sand control. Specific V-Wire technology and welded construction, help to prevent well screen failure by better controlling the sand.
product-1-1
Technical Details
1). Available sizes from 1" ( 25 mm) to 22" (560 mm) 2). Water well screens designed to suit well depth 3). Available in slots sizes from 0.15 mm to 3 mm 4). Length up to 6 metres available 5). Materials : Low Carbon Galvanised / SS304/ SS316/ SS316L – or as required to meet Customer requirements. 6). End fittings – to suit Customer requirements
