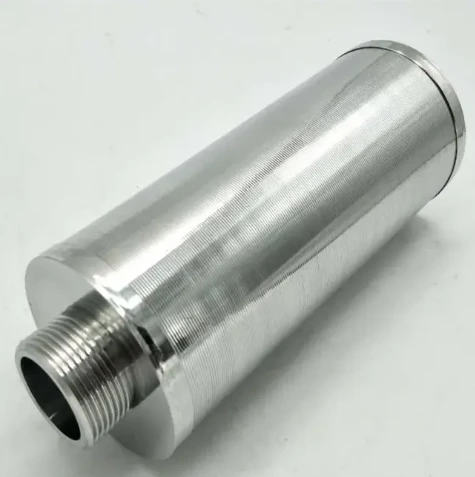

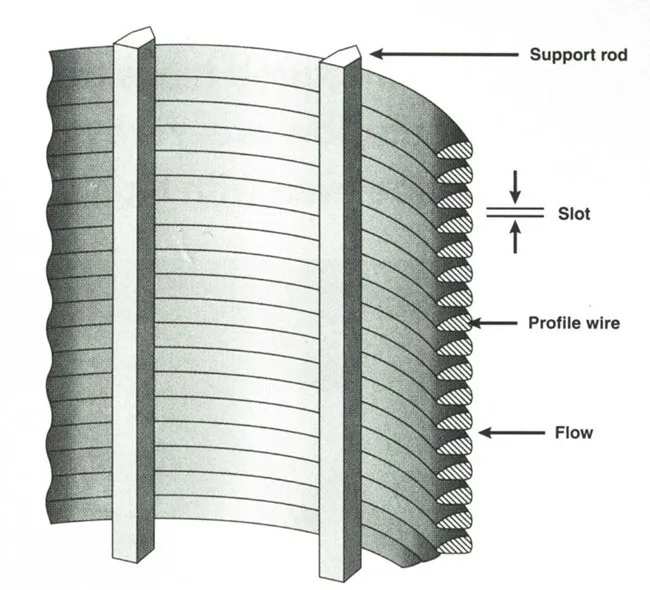

WEDGE SCREEN MESH--WATER WELL SCREENS Water well screens, also called Vee wire well screens, are made of V or wedge shaped wires around an internal array of longitudinal support rods. It is designed to serve as the intake portion of wells constructed in unconsolidated or semi-consolidated...
Features
|
Wedge Screen Mesh Tube/ Water Well Screen Details
|
|
|
Material
|
304 316 Stainless steel wire, low carbon steel
|
|
Finish
|
Polished, electric galvanized after welded
|
|
Slot/ Gap
|
0.2mm, 0.5mm, 0.75mm, 1mm etc
|
|
profile wire
|
2.2x3.5mm, 3x4.6mm or customized
|
|
Support Rod
|
3mm, 3.8mm, 4mm, 5mm etc
|
|
Diameter
|
4", 5", 6", 8", 9", 10" etc
|
|
Length
|
2.9m, 5.8m, 6m, or customized
|
|
End Connection
|
baffle ring connection, Thread connection
|
* Inward opening slots (in-flow) prevents sand particles from remaining lodged in screen.
* High efficient and ensures consistent pumping and long well life
* Specially V-shaped wire structure with two point welding prevents plugging and clogging.
* Continuous slot wedge wires provide large open area than perforated metal pipes or slot pipes used in water well applications.
* Strong longitudinal support rods supply excellent pressure-resistant performance
