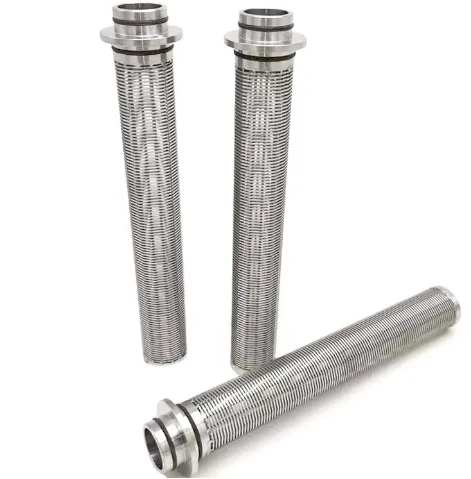

Stainless Steel And Hastelloy Wedge Wire Filter Screen

What is the wedge wire screen ?

As a filtering element, wedge wire screen, know as the wedge wire silk screen or T-shaped screen , is manufactured by the welding of the surface wire and support wire with special techniques.

The surface were has a requirement of precise size ans is welded to the support wire with a precise clearance.

It have the flat mesh and cylindrical type in structure.

Why is the wedge wire screen selected

The filtering element plays a crucial role in the filtration equipment. The filtering element of wedge wire screen can meet the requirements of high precision and strength.Besides high precision and strength,non-clogging, the use of it in the automatic back-washing equipment can make the equipment change the filtering element without a pause and improve the efficiency.

High precision+ high strength+non clogging +high efficiency = cost reduction

The wedge wire screen has two bases structure, one is flat mesh shape and the other is wire wrapped screen (johnson screen) , these two type can make out almost full shape ans size wedge wire filteration parts.

In filtration, the solids are blocked and deposited on the smooth surface, forming a filter cake which can block smaller solid particles. The unblocked tiny particles will not obstruct the V-shaped slot.

The inverted water(gas) clears the filter cake and dirts from the surface of the filter element.

Specification

Wedge Wire Filter Screen

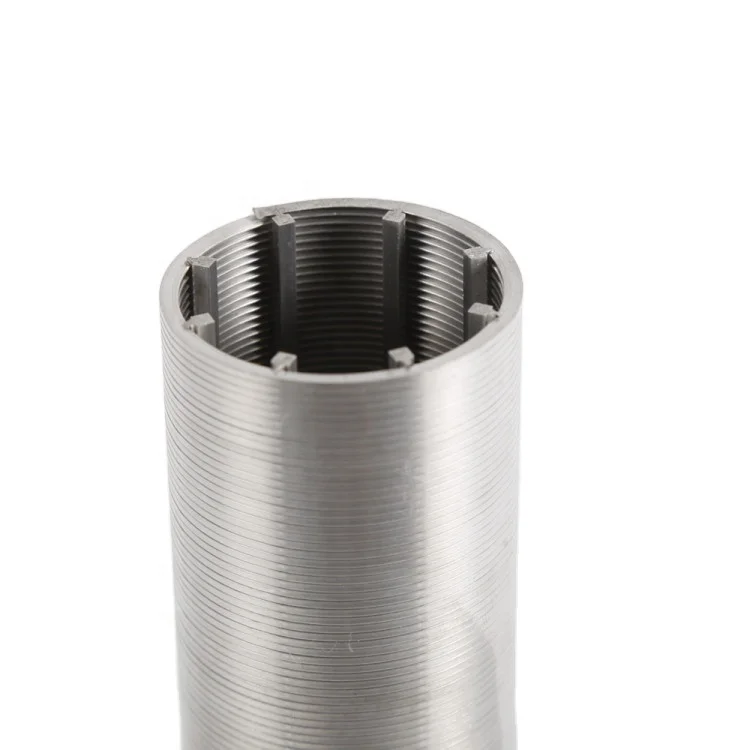

The wedge wire screen (Johnson Screen) also called the wire wrapped screen.Continuous slot screens made of V shape wire wrapped around a series of vertical rods. This allows the most inlet area and higher
productions rates.
Well screen features and benefits
reliable sand control
very accurate slot openings and pore sizes
slot and pore size validation.
resistance against plugging
increased production rates
superior mechanical strength
corrosion and erosion resistance

Wedge wire is the filter media which are made from shaped wire. The profile wires are accurately aligned and then welded to the
support rods mostly by automatic resistance welding. Both the profile and the support wires can be with certain wedge shape or
other section shape such as water drop , circle, or keystone. Wedge wire mainly shows in two forms: slotted tubes (cylindrical
filter element) and flat screen (sieve).
Advantages of wedge wire:
- Strong construction, high strength
- Excellent media retention
- Superb backwash ability
- Less possibilty of clogging
- Long service life
- Low Maintenance costs

Note:

1. other structure can be processed in accordance with the requirements.

2. Each diameter needs new welding equipment and standard diameter is listed in the table. It is suggested that the standard diameter should be adopted preferentially.

3.The minimum slot increases with the diameter. Other diameters can be processed in accordance with requirements.

Our Advantages

Sales:
* One to one service.
* Quick respond in 24 hours.

OEM and design:
* Fully customized from raw mesh to part number engraving, according to your drawing.
* Design and CAD ability to meet your specific requirement in various application.

Quality:
* Bubble point test and other laboratory test to ensure functionality.
* ISO9001 management system to maintain quality consistency.

Product packaging

Robust packaging for safe delivery.
Various delivery methods to meet customer's need.
