Stainless Steel 304 316 316L V Wrapped Well Water Oil Strainer Filter Wedge Wire Screens Pipe

Stainless Steel 304 316 316L V Wrapped Well Water Oil Strainer Filter Wedge Wire Screens Pipe

Wedge wire screen or profile screen is in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.Wedge wire screen...

Send Inquiry

Features

Wedge wire screen or profile screen is in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.Wedge wire screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates. offering great strenght. precision ,long service life.



Wedge Wire Screen
Material
Galvanized Low Carton(LCG) Stainless Steel(304 316 etc)
Wedge Wire
Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3,7.0
Support Rod
Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3
Round Rod(mm):2.5-6.0
Slot Size
0.05,0.08,0.1,0.15,0.2,0.25,0.3.......6.0mm Also Achieved Upon Request
Length
Up To 6 Meters
Diameter
25-1200mm
End Connection
Plain Beveled Ends For Welding Or Threaded Male &Female Coupling(Spiral)
Other Specifications Available Upon Request
Technical Parameter
Size(inch)
O.D(mm)
Slot(inch)
Length(m)
Collapse Strength(psi)
Tensile Weight(ton)
Wire Size (mm)
RODS(mm)
4
117
0.040
3
395
6
2.2*3.0
3.8mm/22
4
114.3
0.040
3
395
6
2.2*3.0
3.8mm/22
6
168.3
0.040
3
252
8
2.3*3.5
3.8mm/32
8
219.1
0.010
3
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.020
3
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.040
3
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.010
3
206
11
3.0*5.0
3.8mm/50
10
273.1
0.020
3
191
11
3.0*5.0
3.8mm/50
10
273.1
0.040
3
167
11
3.0*5.0
3.8mm/50
Features

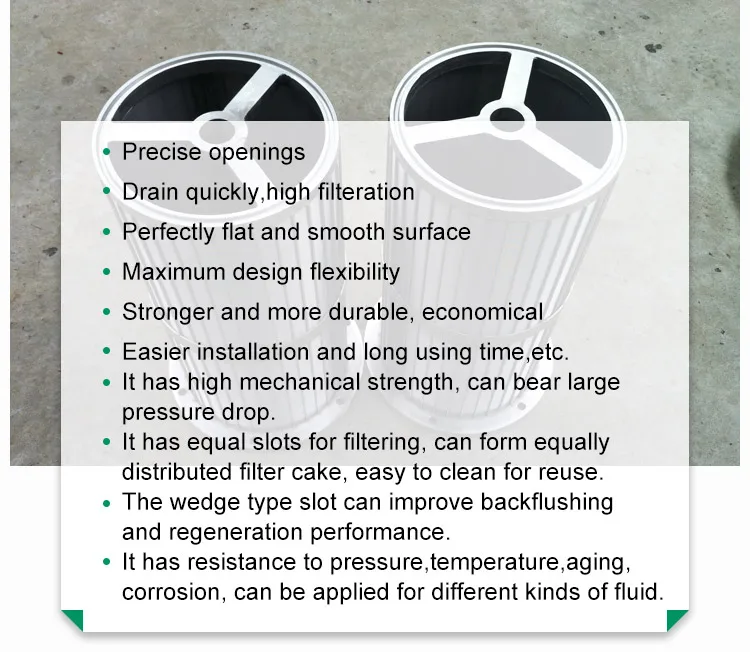

Wedge wire mesh is made of SS "V"shaped and SS "V"shaped, SS "V"shaped and SS rod ,or SS "V"shaped and SS "CONVEX "shaped rod with an unique welding process, with unique characteristics:
product-1-1
