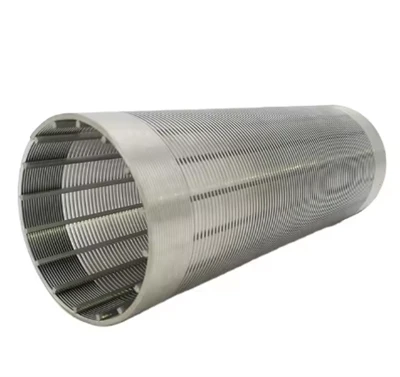

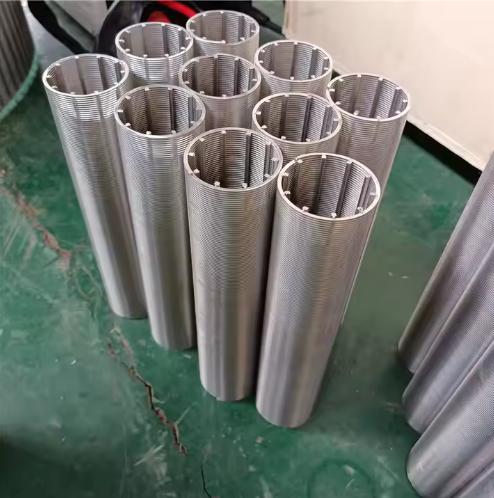

OD 48mm For Water Treatment Typical Stainless Steel 316L Wedge Wire Screen Filter Cylinders

1. V-Shaped Slots -Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are justbarely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screenand clog it.
2. Very Large Open Area - This design gives continuous slot and hence the open area for water to enter is more than 2 timesthat of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictionalhead loss and the efficiency of tube well is improved appreciably.

3. Better Sand Filtration -Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.
4. Low maintenance costs - Separation at the screen surface which can easily cleaned by scraping or back washing.
5. Maximum process output - Precise and continuous slot openings resulting in accurate separation without loss off media.
6. Energy Saving - Due to reduce frictional head losses and increased discharge, the pump load reduces the power required topump same quantity of water. Power saving of around 20-25% is observed.
7. Chemical and thermal resistant - A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures. Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly. Continuous-slot screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.
