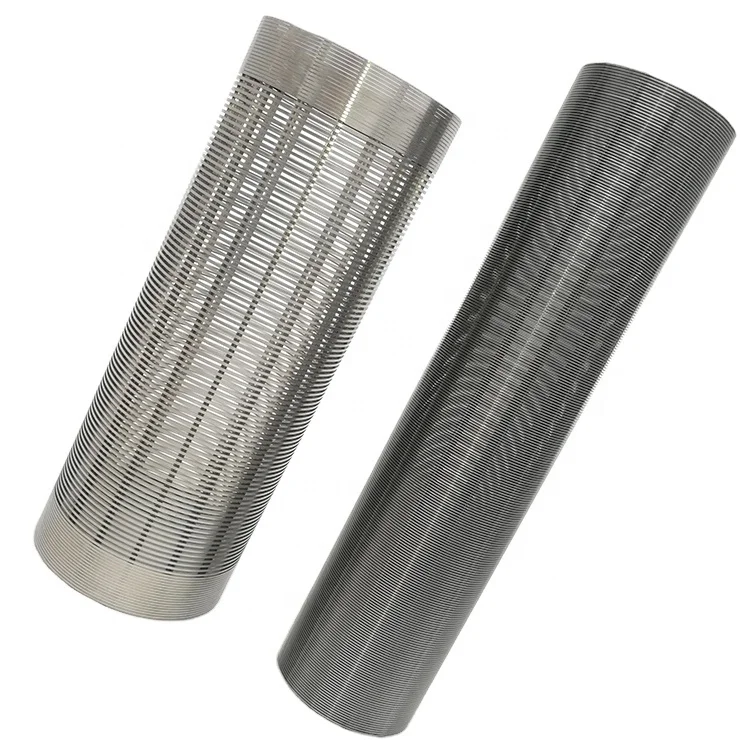

Johnson Screen Wedge Wire Screen Metal Filter Water Well Screen

Well Screen Wedge wire screen filter wedge wire filter elements are made of stainless steel wedge wire screen. Filter rating is fro 25 to 3000 microns. Wedge wire screen is welded onto rods with stainless steel wedge wire. Application: wedge wire filter elements are used in sieving of petroleum,...

Send Inquiry

Features

Well Screen Wedge wire screen filter

wedge wire filter elements are made of stainless steel wedge wire screen. Filter rating is fro 25 to 3000 microns. Wedge wire screen is welded onto rods with stainless steel wedge wire.

Application: wedge wire filter elements are used in sieving of petroleum, chemical industry pharmaceutics, food and beverage, metallurgy and coal, also can be used in filtration of water treatment.

Name	Wedge Wire Tube Filter
Material	SS 304 , SS 316, SS 904 L , Duplex 2205

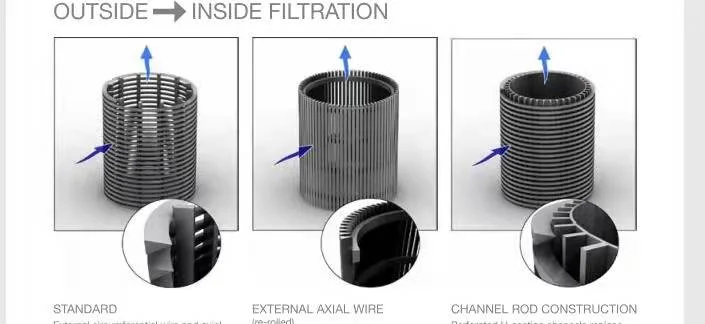

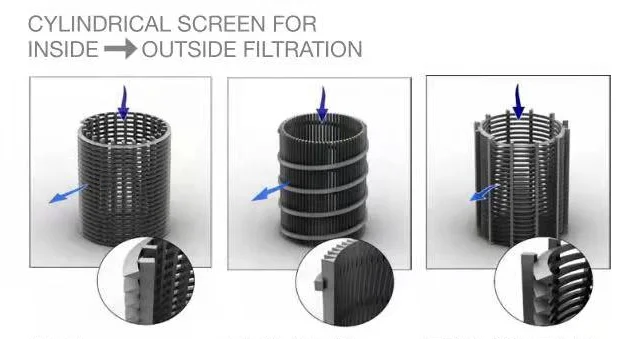

Filter Direction	From inside to outside or from outside to inside
Micron Rating	25-3000 micron

The wedge wire filter elements have such features as good strength, high ridity resistance to abrasion and corrosion, even gap, good in filtration and fluidity easy to clean and back wash.

product-1-1
