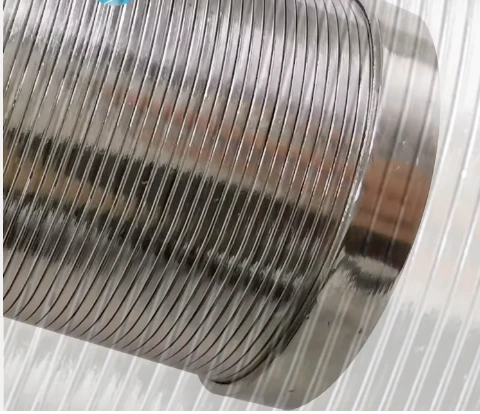

High Corrosion Resistance 6 Inches Stainless Steel Water Filtration Wedge Wire Wrapped Screen Pipe

High corrosion resistance 2 5 inches stainless steel water filtration wedge wire wrapped screen pipe

Product Description

Is design provided for free? Yes,we provide you the design for free. please send us your drafts, we can help you draw professional drawing, The following dimensions are for reference V-wire 20 30 47 60 68 90 118 130 158 191 Width 0.50 0.76 1.19 1.52 1.80 2.26 2.95 3.30 4.01 4.95 Height 1.01 1.27 2.23 2.54 4.50 3.50 4.70 6.35 6.07 9.22 Accept custom size Supporting rod 63 025 93 XJR 156 SR250 SR475 Width 1.52 1.00 2.26 2.26 3.84 2.50 2.50 Height 2.54 1.50 3.51 4.80 5.51 5.60 6.30
