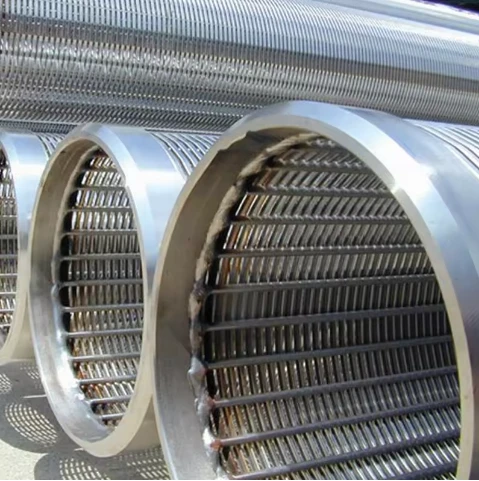

Customized Johnson Wedge Wire Sand Control Cartridge Tube Well Strainer Screen Filter Pipe For Paper Pulp

External diameter: 25--300mm Standard: Non-standard, OEM , ODM Specification: Easy leakage, wear resistance, corrosion resistance. The mesh cross section is a trapezoid, narrow width of the gap, have a wire made of cold rolled stainless steel, this wire is support rods. The screen is uniform,...

Send Inquiry

Features

Material	SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Length Range	Up to 6000mm
Width Range	Up to 6000mm
Slot Range	20 micron to 3000 micron (Tolerance:+-5 micron)
Other Shapes	Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.
Wedge Wire	0.5X1.5	0.75X1.5	1X2	1.5X2	2X3	2X4	3X5
Support Rod	1.5X2.5 2X3	1.5X2.5 2X3	1.5X2.5 2X3	1.8X2.5 2X3	2X3 2X4 3X5 3X6 3X10 4X7	2X4 3X5 3X6 3X10 4X7 5X6	3X5 3X6 3X10 4X7 5X6 5X8
End Finishing	With the frame, without any frame, according to request.
Note	Customized According To Requirement

External diameter: 25--300mm

Standard: Non-standard, OEM, ODM

Specification:Easy leakage, wear resistance, corrosion resistance. The mesh cross

section is a trapezoid, narrow width of the gap, have a wire made of cold rolled

stainless steel, this wire is support rods. The screen is uniform, the welding is

stable, high hole rate, long service life, high strength, stiffness and bearing capacity

of rigid, screening filter device can be made into various shapes.

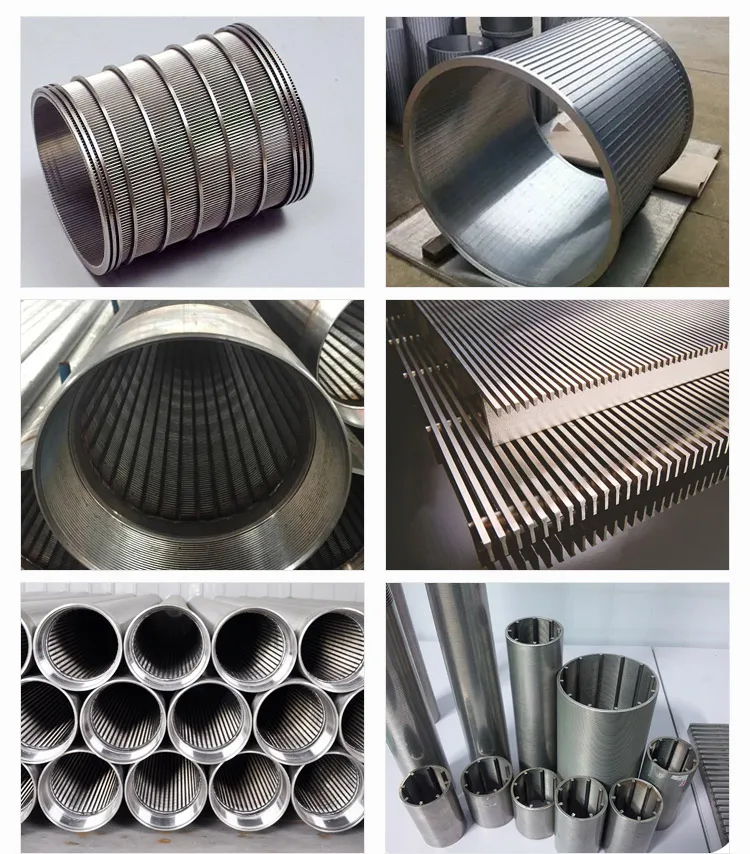

custom Johnson wedge wire sand control cartridge tube well strainer screen filter pipe for paper pulp

Wedge Wire Screen is a sieve made from looped wires formed into a deep wedge-shaped section. They are characterized by precision workmanship and gap size, extended life span, capability of self-cleaning and low pressure drop.

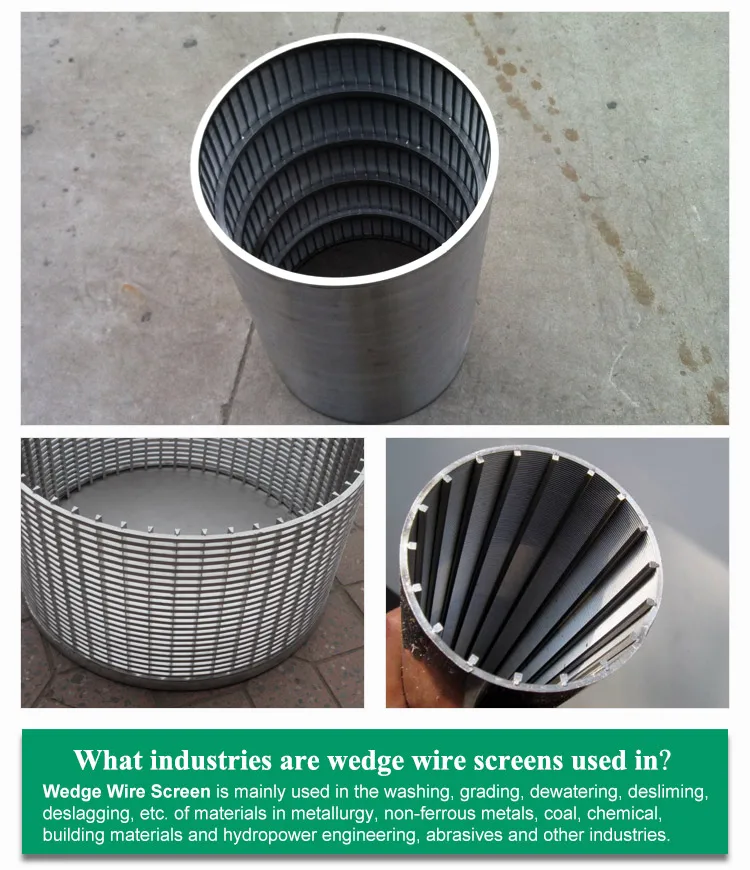

custom Johnson wedge wire sand control cartridge tube well strainer screen filter pipe for paper pulp
