Customization SS 304 316 Stainless Steel Johnson Screen Mesh/Wedge Wire Screen

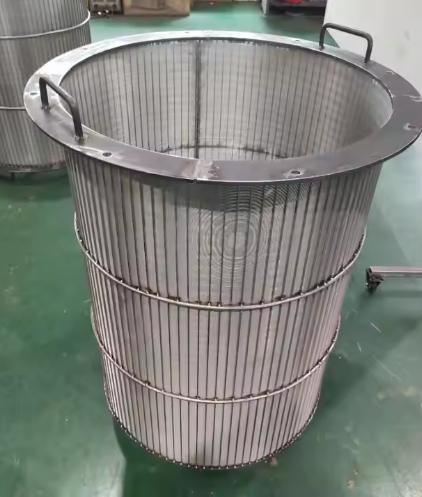

Wedge wire screen or profile screen is in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.Wedge wire screen...
Features
|
Wedge Wire Screen
|
|||
|
Material
|
Galvanized Low Carton(LCG) Stainless Steel(304 316 etc)
|
||
|
Wedge Wire
|
Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3,7.0 |
||
|
Support Rod
|
Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3 Round Rod(mm):2.5-6.0 |
||
|
Slot Size
|
0.05,0.08,0.1,0.15,0.2,0.25,0.3.......6.0mm Also Achieved Upon Request
|
||
|
Length
|
Up To 6 Meters
|
||
|
Diameter
|
25-1200mm
|
||
|
End Connection
|
Plain Beveled Ends For Welding Or Threaded Male &Female Coupling(Spiral)
|
||
|
Other Specifications Available Upon Request
|
|||
