AISI304 0.5mm Slot Water Well Johnson Screen Water Well Pipe Stainless Steel Wire Wrapped Screen

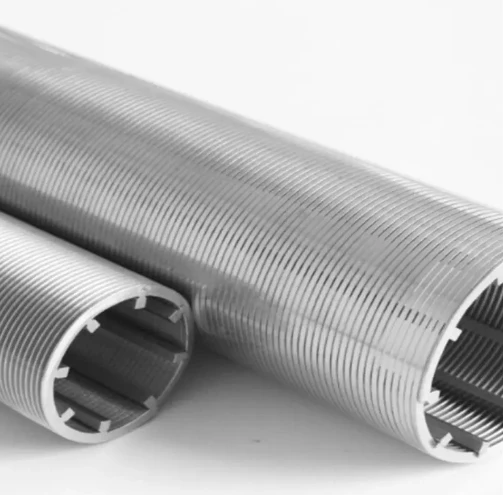

Stainless steel wedge wire tube

Wedge wire screen tube ( Johnson Filter Pipe), also called round slot tube. It is made of stainless steel wire, which is the most popular type for industry filtration.

The Johnson wedge wire screen tubes are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of these wires is fusion welded. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well. And the Johnson screens wedge wire screen tubes are popularly used in making of water well screen.

Application: SS wedge wire wrapped screen tube is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance. Wrapped screen tube can be used for conventional filtration, outside-in and filtration, inside-out. The fine wire typically used maximizes the open area. Various fitting options are available with cartridges to help incorporate it into almost any process. Our wedge wire wrapped screen tubes are mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries,water, oil or gas filter and other filtration equipment. Wedge wire screen tube, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

Our engineering department ensures that each product conforms to our customer's specific needs, making Slot a reliable supplier, and consultant as well of wedge wire screen

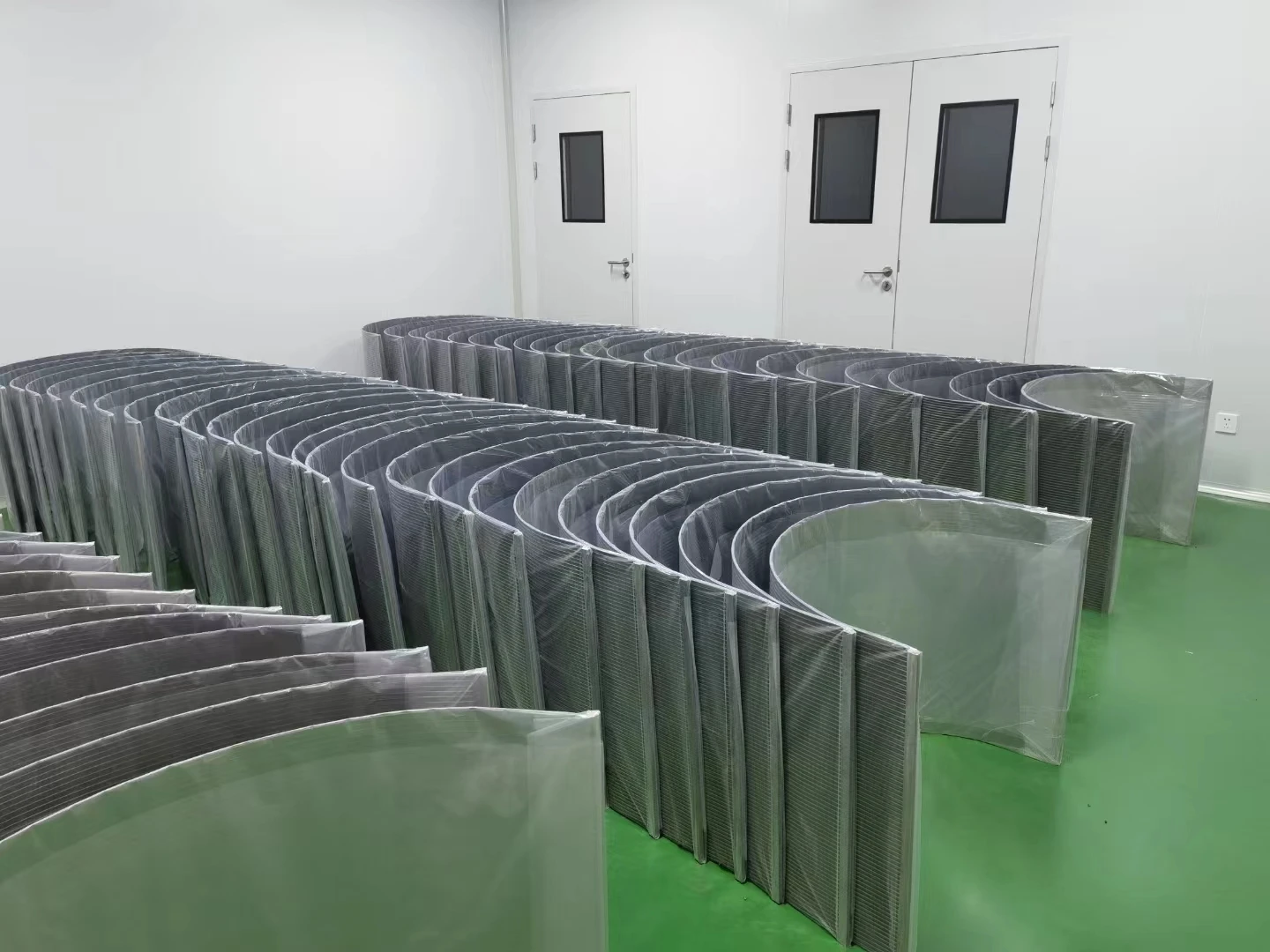

Product packaging

Quality Control

Raw material testing
