8 5/8" Stainless Steel Johnson Type Filter Strainer Screen For Water Well Drilling Filtering

8 5/8" Stainless Steel Johnson Type Filter Strainer Screen For Water Well Drilling Filtering

Product Description ss johnson Wedge Wire screen panel False Bottom For Brewery Mash Tuns Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media. It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The...

Send Inquiry

Features

Product Description
product-1-1
wedge wire filter screen sieve plate
material
SS304,SS316,SS316L
profile wire
1x2mm,2x3mm
support rod
2x3mm,3x4mm
slot opening
200micron,250micron,400micron,500micron,700micron,750micron,etc.
shape
plate,pipe,round screen
ss johnson Wedge Wire screen panel False Bottom For Brewery Mash Tuns

Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.

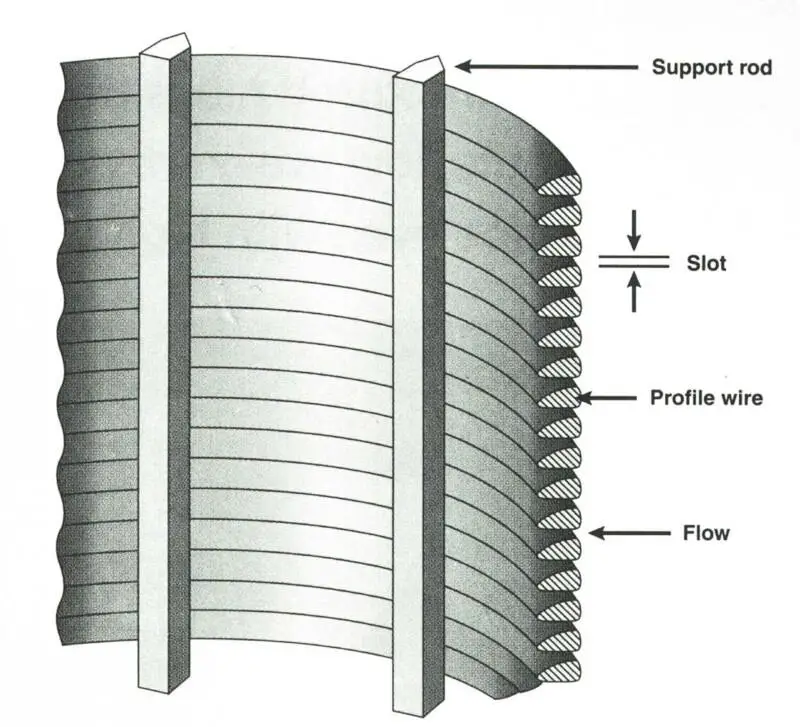

It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.

product-1-1
Water treatment wire mesh sieve bend wedge wire screen supplier

Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.
It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.

product-1-1
product-1-1
If you need the quotation, please advise us:

1.Material: 304 or 316SS wedge wire?
2.Slot: 0.2mm-5mm, which one?
3.Profile wire size: 1x2mm, 2x3mm etc
4.Support bar size: 2x3mm, 3x4mm etc
5.For rotary screen drum, please advise us the outside diameter and length; for screen, please advise us the width and length.
6.If you have drawings, please send us.

product-1-1
product-1-1
Feature

1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5)Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

Detailed Images
product-1-1
product-1-1
product-1-1
round wedge screen
product-1-1
Johnson pipe screen
product-1-1
wedge wire screen panel sheet
product-1-1

304stainless steel wedge wire tube
Ouside diameter: 6cm
Length: 50cm
Support rod inside
Slot: 200 micron

product-1-1

304stainless steel wedge wire tube
Ouside diameter: 60cm
Length: 200cm
Support rod inside
Slot: 500 micron

product-1-1

Special size wedge wire screen
Size: customized
Slot: 200 500 1000micron

product-1-1

304stainless steel wedge wire tube
Ouside diameter: 40cm
Length: 120cm
Support rod outside
Slot: 500 micron
