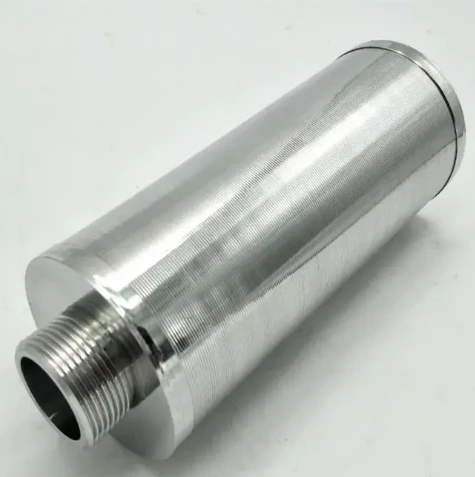

4" 6" 8" Diameter 304 Stainless Steel Wedge V Wire Pipe Johnson Wire Wrap Screen

4" 6" 8" Diameter 304 Stainless Steel Wedge V Wire Pipe Johnson Wire Wrap Screen

4" 6" 8" Diameter 304 Stainless Steel Wedge V Wire Pipe Johnson Wire Wrap Screen Product Description Water well screen also known as Johnson Screen Filter Tube/Wedge Wire Screen Filter Cylinders, it is made of V-shape profile wire and longitudinal support rods. Each intersecting...

Send Inquiry

Features

4" 6" 8" Diameter 304 Stainless Steel Wedge V Wire Pipe Johnson Wire Wrap Screen
Product Description
Water well screen also known as Johnson Screen Filter Tube/Wedge Wire Screen Filter Cylinders, it is made of V-shape profile wire and longitudinal support rods. Each intersecting point of wires is fusion welded which makes it has sturdy construction and good mechanical property. The wedge profile wires and support profile rods can be axial wires or radial wires. As flow direction, it includes internal filtration and external direction filtration.

Advantage：
1. The continuous gap greatly increases the water area, so it is better to contact the water -containing layer.
2. The V -shaped section structure avoids blocking and ensures smooth circulation.
3. Continuous pores can be effectively used for a long time.
4. The structure of the trapezoidal water filter pipe is strong, the pore rate is high, and the gap size is accurate.
5. The trapezoidal wire filter pipe is easy to rush back, with long service life, safe and reliable, low comprehensive cost
Feature
* High quality steel for high strength.
* High filtering efficiency without clogging.
* Various types and sizes for
* Corrosion and rust resistance.
* Easy installation and replacement.
* Durable and long service life.
Application
Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving
liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Product Name
water well screen/well screen pipe /Johnson wedge wire screen/sand control well screen
Material
stainless steel (304, 316 ,316L etc.)
Slot Size
0.1mm-10mm or as per customers' requirement
Wedge Wire
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Wire
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Diameter
25mm to 1200mm
Length
up tp 6000mm
Open Area
up to 60%
End Connection
Flat and inclined face welding or threaded

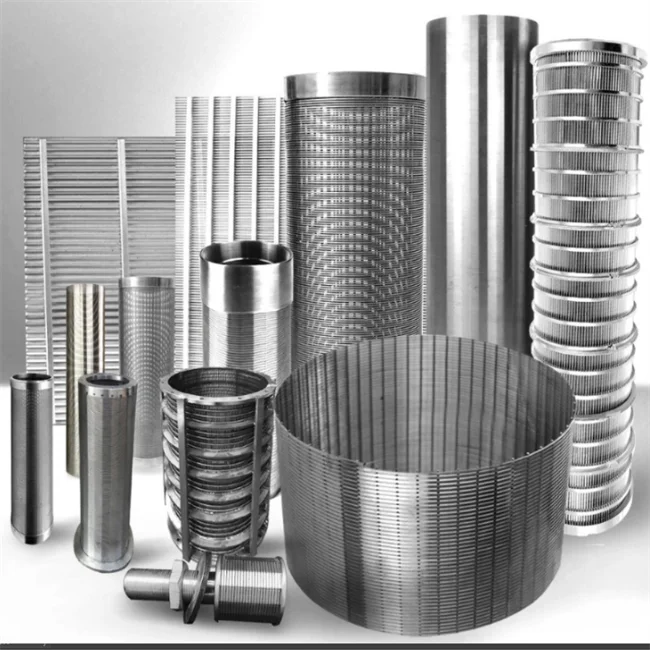

product-1-1

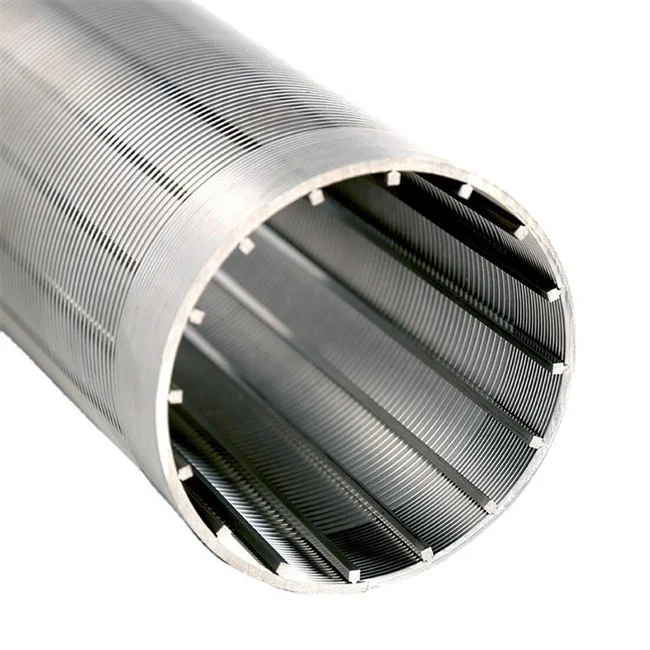

product-1-1

Why Choose Us
1. Professional & experienced company.
2.Professional design team& excellent sales team for your service.
3.Quick delivery& superior quality.
4.Support OEM.
5.Sample: Available
6.We have a strict quality inspection system and a professional testing team,we guarantee product quality .
