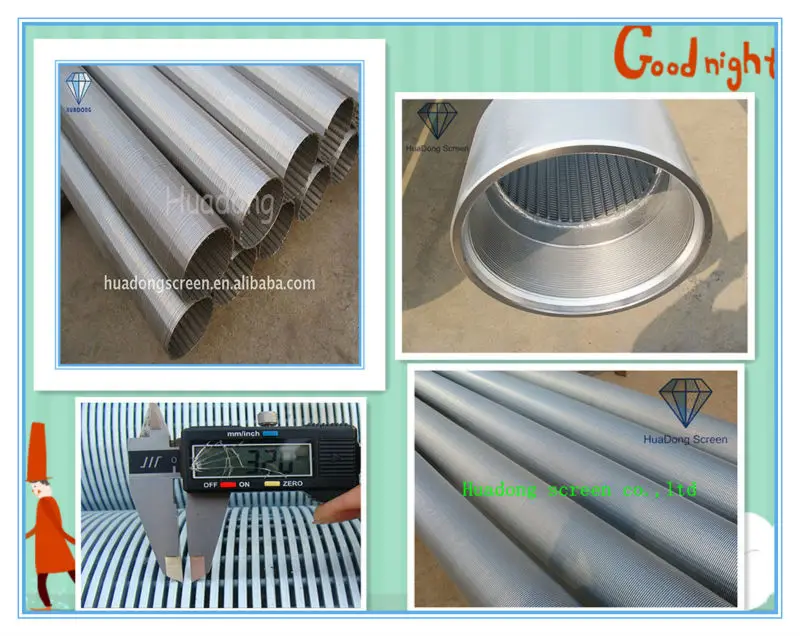

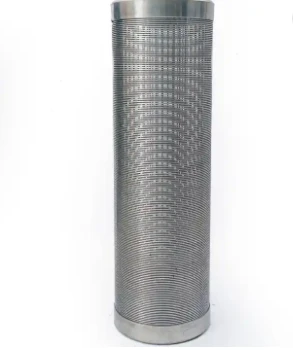

316 L Stainless Steel Cylindrical Mesh Filter/ Round 10'' Johnson V Wire Water Well Screen
Product details Stainless Steel Water well screen Water Well Screens consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Water Well Screens has sturdy constriction and good mechanical property. The V-shape section plane...
Features
Product details
Stainless Steel Water well screen
Water Well Screens consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Water Well Screens has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water Well Screens under the great pressure, so it can filter sand better. Meanwhile, the slot of Water Well Screens can change according to the real condition of the earth.
Technical Parameters:
|
Screen Size |
Inside Diameter |
Outside Diameter |
OD of Female Threaded End |
||||||||
|
In |
mm |
In |
mm |
In |
mm |
In |
mm |
||||
|
2 |
51 |
2 |
51 |
2 5/8 |
67 |
2 3/4 |
70 |
||||
|
3 |
76 |
3 |
76 |
3 5/8 |
92 |
3 3/4 |
95 |
||||
|
4 |
102 |
4 |
102 |
4 5/8 |
117 |
4 3/4 |
121 |
||||
|
5 |
127 |
5 |
127 |
5 5/8 |
143 |
5 3/4 |
146 |
||||
|
6 |
152 |
6 |
152 |
6 5/8 |
168 |
7 |
178 |
||||
|
8 |
203 |
8 |
203 |
8 5/8 |
219 |
9 1/4 |
235 |
||||
|
10 |
254 |
10 |
254 |
10 3/4 |
273 |
11 3/8 |
289 |
||||
|
12 |
305 |
12 |
305 |
12 3/4 |
324 |
13 3/8 |
340 |
||||
|
14 |
356 |
13 1/8 |
333 |
14 |
356 |
--- |
--- |
||||
|
16 |
406 |
15 |
381 |
16 |
406 |
--- |
--- |
||||
|
20 |
508 |
18 3/4 |
476 |
20 |
508 |
--- |
--- |
||||

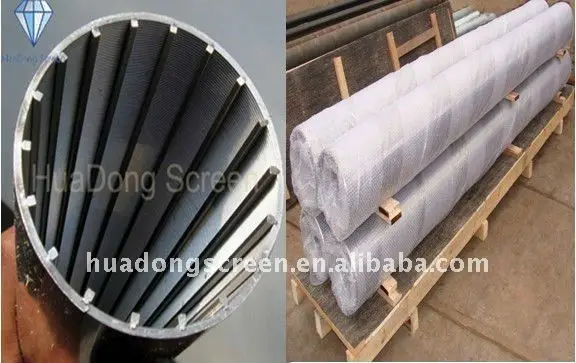

Packing Details:
Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with: 1.Name & identification mark of manufacturer-HuaDong Brand 2. Batch number 3. Date of manufacturer 4. Material 5. Safe heating & application temperature
