304l 316l Stainless Steel Wedge Wire Screen Round Rod With Unique Welding Wire Wound Screen Steel Filter Basket Silencer Pipe

Product Description Product Display

Features

Product Description

wedge wire	Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
support rod	Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size	0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material	stainless steel (304,316 etc.)
Length	up to 6 meters
Diameter	from 25mm to 1200mm.
End connection	Plain beveled ends, flanged or threaded couplings
Characteristics	The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. It can be used in many kinds of medium filtering.

Product Display

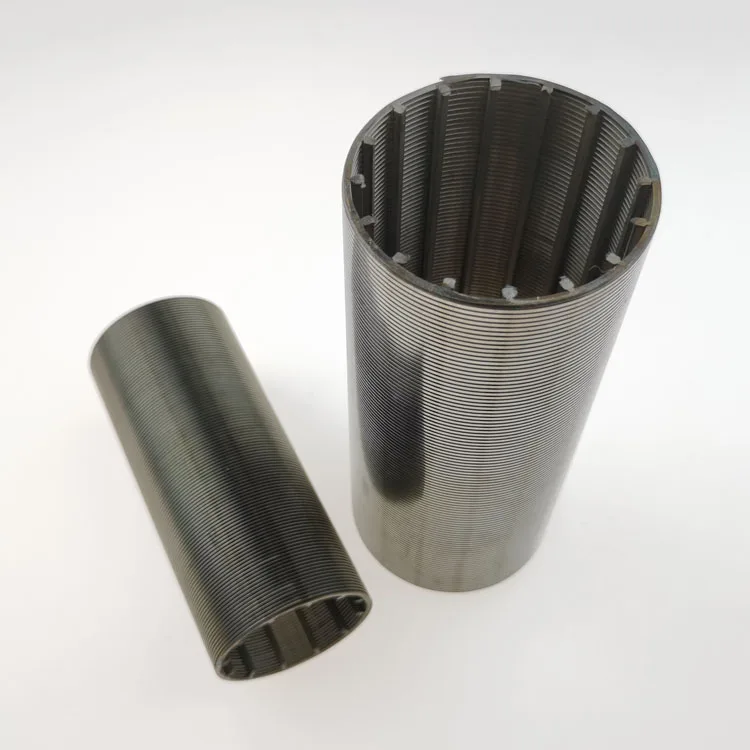

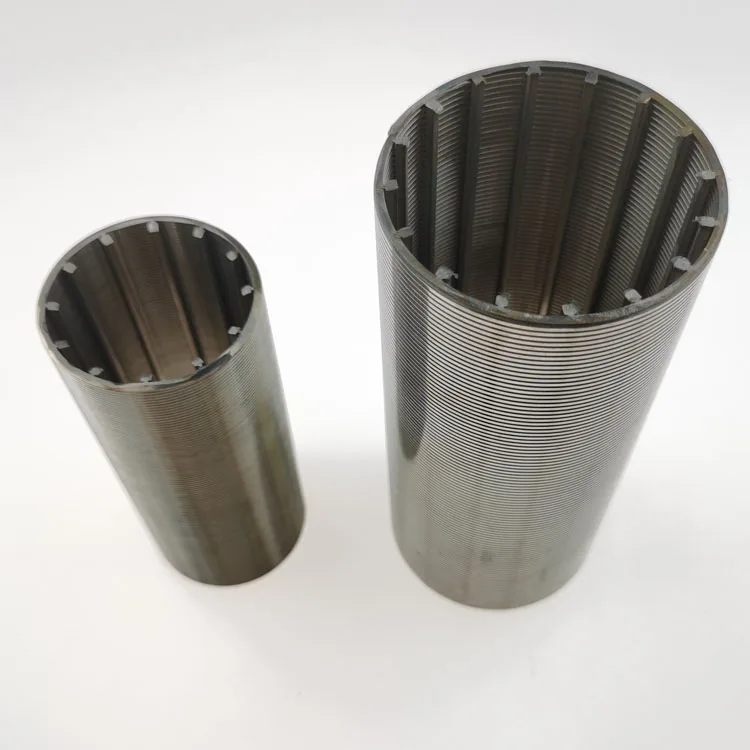

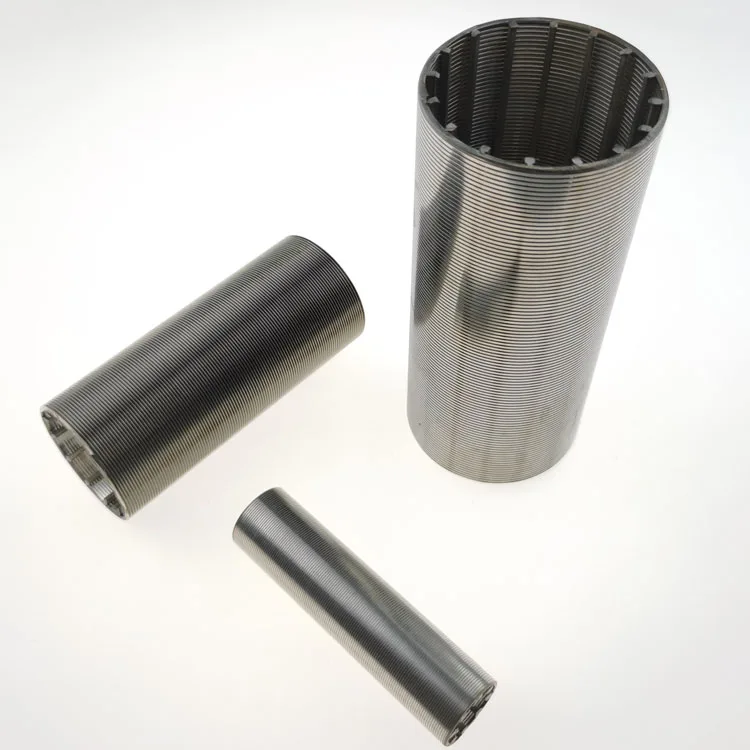

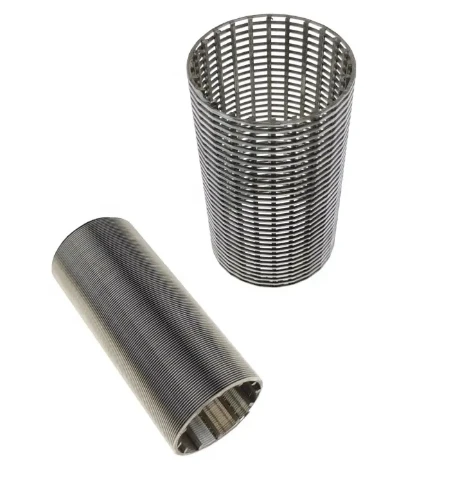

304 316 stainless steel wedge wire screen round rod with unique welding Wire wound screen steel filter basket Silencer pipe
